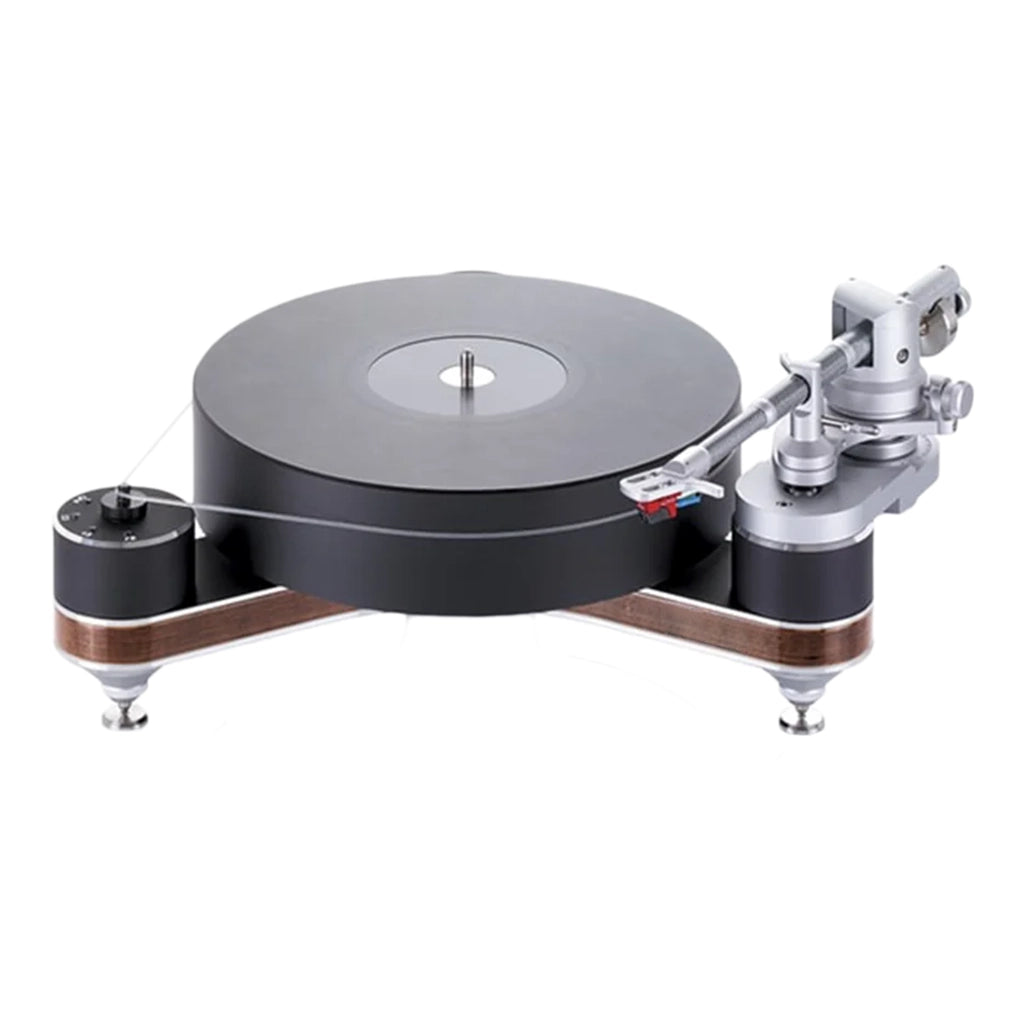

Clearaudio Innovation Compact Wood
The Innovation Compact Wood is based on the technology of the Clearaudio Innovation Wood turntable, but uses a single plinth as opposed to the stainless steel sub-platter found on the Innovation Wood. Its resonance-optimized chassis shape is based on the proven success of Clearaudio’s three-point design — a combination of Panzerholz, aluminum layers, and aluminum pods. The Innovation Compact Wood uses Clearaudio’s patented CMB (Ceramic Magnetic Bearing) technology, where the platter magnetically levitates on an inverted bearing attached to a low-friction ceramic shaft. The high-torque DC motor is equipped with electronic OSC (Optical Speed Control). The high-density, dynamically balanced 2.75″ polyoxymethylene (POM) platter provides excellent dimensional tability.
The Innovation Compact Wood is dual tonearm capable and comes with the Clearaudio Universal 9" tonearm.

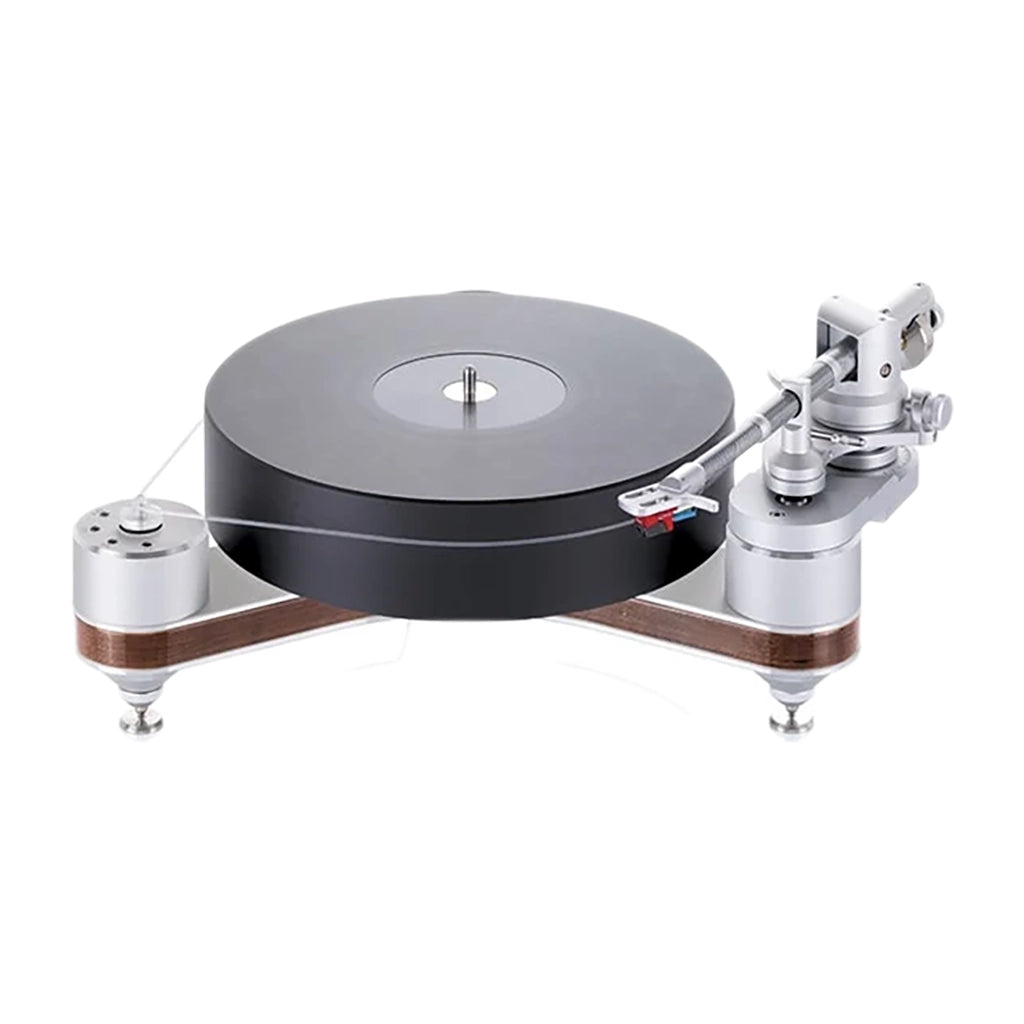

Black or silver plinth with wood trim is standard. The piano black plinth with Panzerholz piano black trim is a $500 up-charge and is a special order item.
Resonance-optimized chassis shape, belt-driven with self-adjusting speed control, dynamically balanced 70 mm / 2.75″ POM platter
33 1/3, 45, and 78 RPM, convenient electronic controls
High-torque DC motor
CMB (Ceramic Magnetic Bearing)
CNC-machined POM (polyoxymethylene), 70 mm thickness
less than +- 0.05 %
26 lbs without tonearm and power supply
18.86″ x 19.09″ x 5.55″
|Other Special Features||
OSC (optical speed control) in real time via infrared sensor, playback with two tonearms possible
