Chord Hugo TT 2 DAC / Headphone Amplifier / Preamplifier (OPEN)
Hugo TT 2 has been radically redesigned from the ground up, not only with beautiful new casework by chief designer John Franks, but with five times the processing power of the original Hugo TT and double that of the multi-award-winning Hugo 2. Hugo TT 2 distills over 20 years of digital development by Rob Watts and takes advantage of the very latest technology.
As expected, it delivers radically improved technical specifications and measurements across the board and exhibits drastic sonic benefits over its predecessor with 768 kHz PCM and DSD 512 playback.
Delving deeper, in comparison to the 256-tap filters that traditional chip DACs may run at, Hugo TT 2’s beating heart is a powerful Xilinx Artix 7 FPGA, custom-coded by Chord Electronics’ Rob Watts, with 86x 208 MHz cores running in parallel to create an advanced 16 FS WTA 1 filter with 98,304 taps. Double that of its multi-award winning transportable brother, Hugo 2 (49,152). Hugo TT 2 also benefits from an upgrade from a 4-element design to a 10-element design, which works in harmony with the radically upgraded FPGA and code to deliver unrivaled audio.
A brand new high-power discrete output stage coupled with second-order noise-shaping integrated between the DAC output and filter is also employed to massively reduce distortion. Further improvements have also been made to the power delivery. Hugo TT 2 eschews the Li-Po battery power supply of the original and ushers in six super capacitors capable of delivering huge, linear dynamic currents when the music demands it with peak output of 5A, 9.3V RMS.
Hugo TT 2 also brings home the much-loved four-stage user-selectable filter controls introduced with Hugo 2 and retains the three-stage user-selectable digital crossfeed function for headphone users who want to improve the perception of depth, similar to that of speakers.
Hugo TT 2 can be upgraded at any time with the addition of M Scaler, Chord's 1M-tap digital upscaling device.
Tap length filter: 98,304vtap 16vFS WTA 1 – 10 element design
PCM support (kHz, 16-32 bit): 44.1, 48, 88.2, 96, 176.4, 192, 358.8, 384, 705.6, 768
DSD support: DoP DSD 64 to DSD 512 – native via Windows
Volume control: Digital
Inputs: 1 x USB Type-B, 2 x coax BNC, 2 x optical, Bluetooth

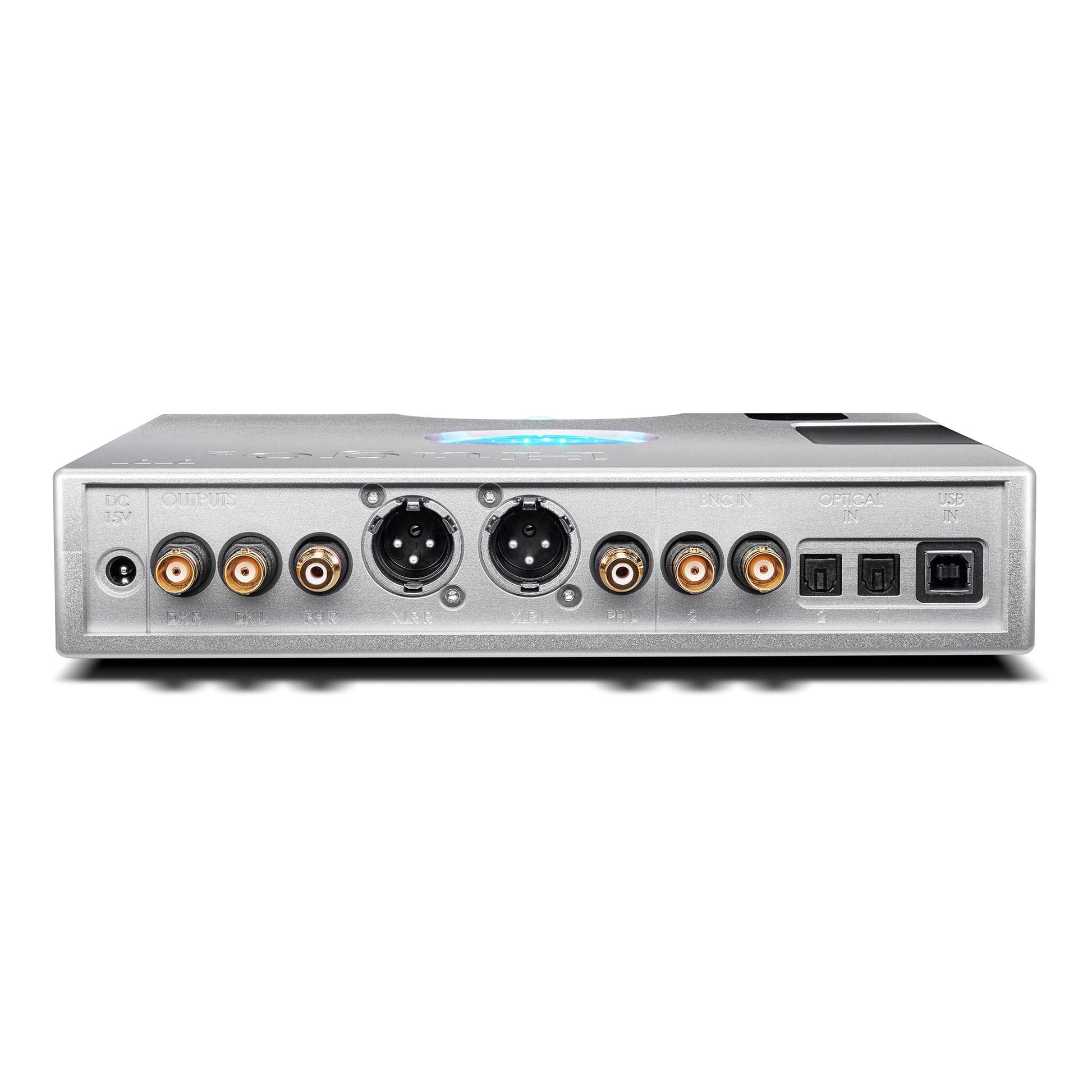

Outputs: Stereo XLR, stereo RCA, 2 x 6.5 mm headphone jack, 1 x 3.5 mm headphone, 2 x DX BNC (expansion outputs)
Dimensions (WHD): 9.25" x 2" x 9.37" (23.5 x 5.2 x 23.8 cm)
Weight: 5.58 lb (2.53 kg)
