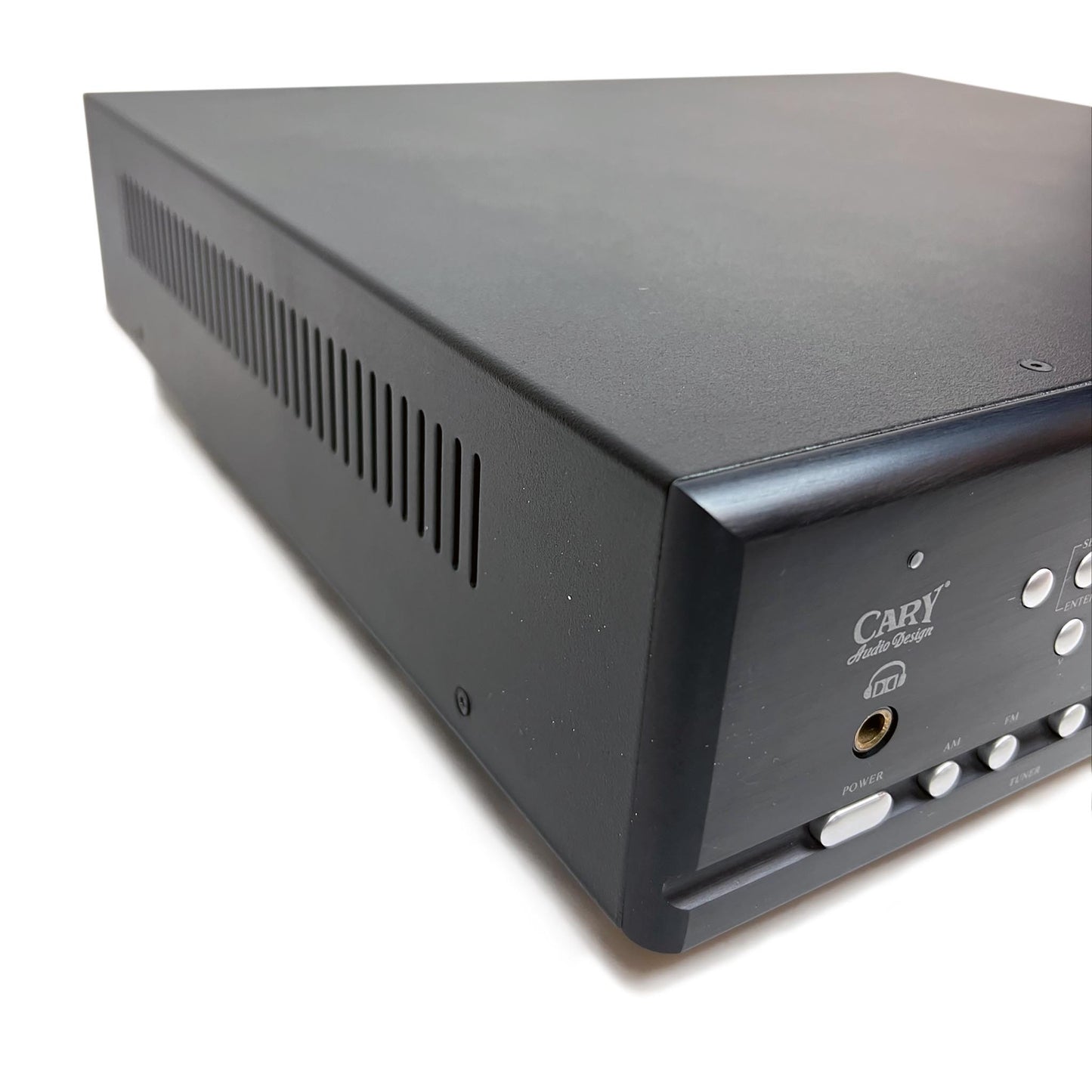

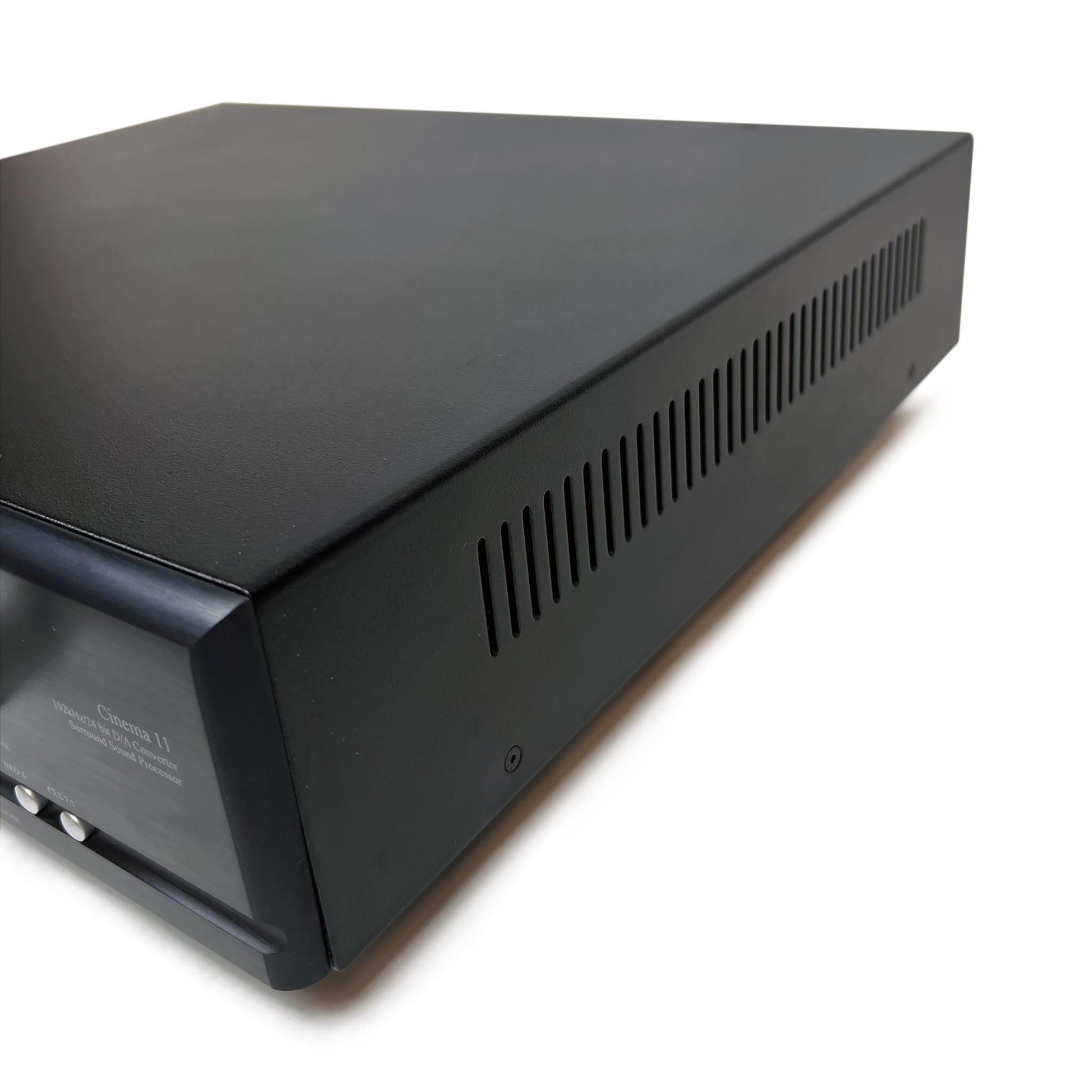

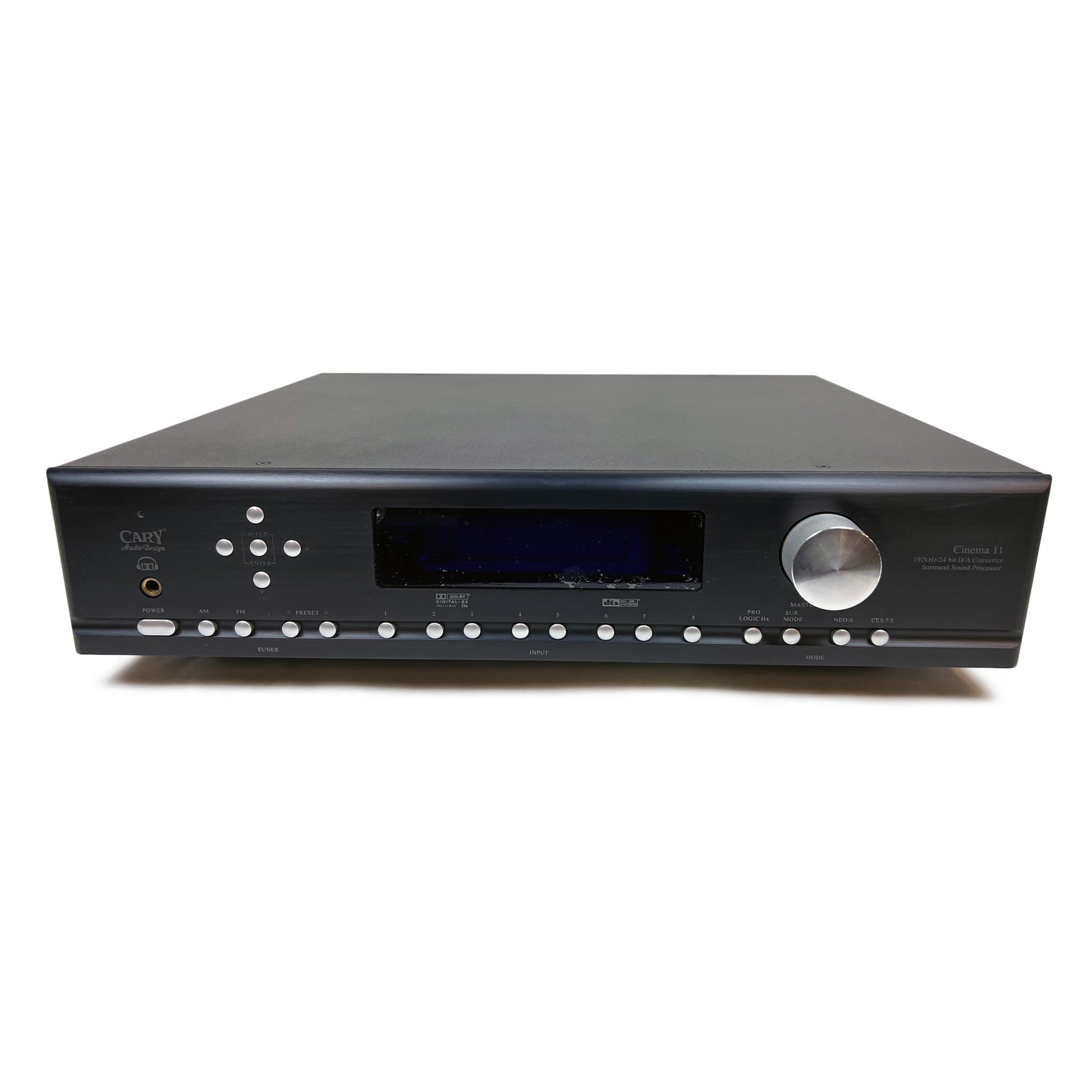

Cary Audio Cinema 11 Surround Sound Processor (OPEN)

More than just an audio control center, the Cinema 11 features the latest version of CES 7.1 decoding, which derives 7.1-channel output from stereo, 5.1, and 6.1-channel sources. Unlike other decoders, CES 7.1 is compatible with all input sources and requires no special encoding. Because the improvement it provides is clearly audible, CES 7.1 decoding is widely regarded as the finest available.

In addition to CES 7.1, the Cinema 11 is also equipped with Dolby Digital Surround EX, Dolby Pro Logic II, Dolby Pro Logic IIx, dts 96/24, dts NEO:6, and dts-ES decoding.

With 32-bit audio digital signal processing (DSP) engines, the Cinema 11 offers exceptional processing power. These DSP engines perform custom Cary Audio processing such as auto sound setup, CES 7.1 decoding, bass enhancement, dialog enhancement, bass management, high-precision digital crossover, and room EQ. Processing is available at sample rates up to 192 kHz with 24-bit resolution to preserve performance from all input sources and listening modes. A dedicated DSP engine is assigned to decoding multichannel compressed audio sources.

Ten-channel 24-bit/96 kHz A/D converters can convert stereo analog audio inputs and 7.1 analog audio inputs to digital signals, allowing the Cinema 11 to apply precise digital signal processing without sacrificing signal integrity. Alternatively, stereo analog XLR or 7.1 bypass signals and 7.1 analog signals can bypass A/D conversion and internal processing to remain fully in the analog domain straight through to the output connectors.

Features

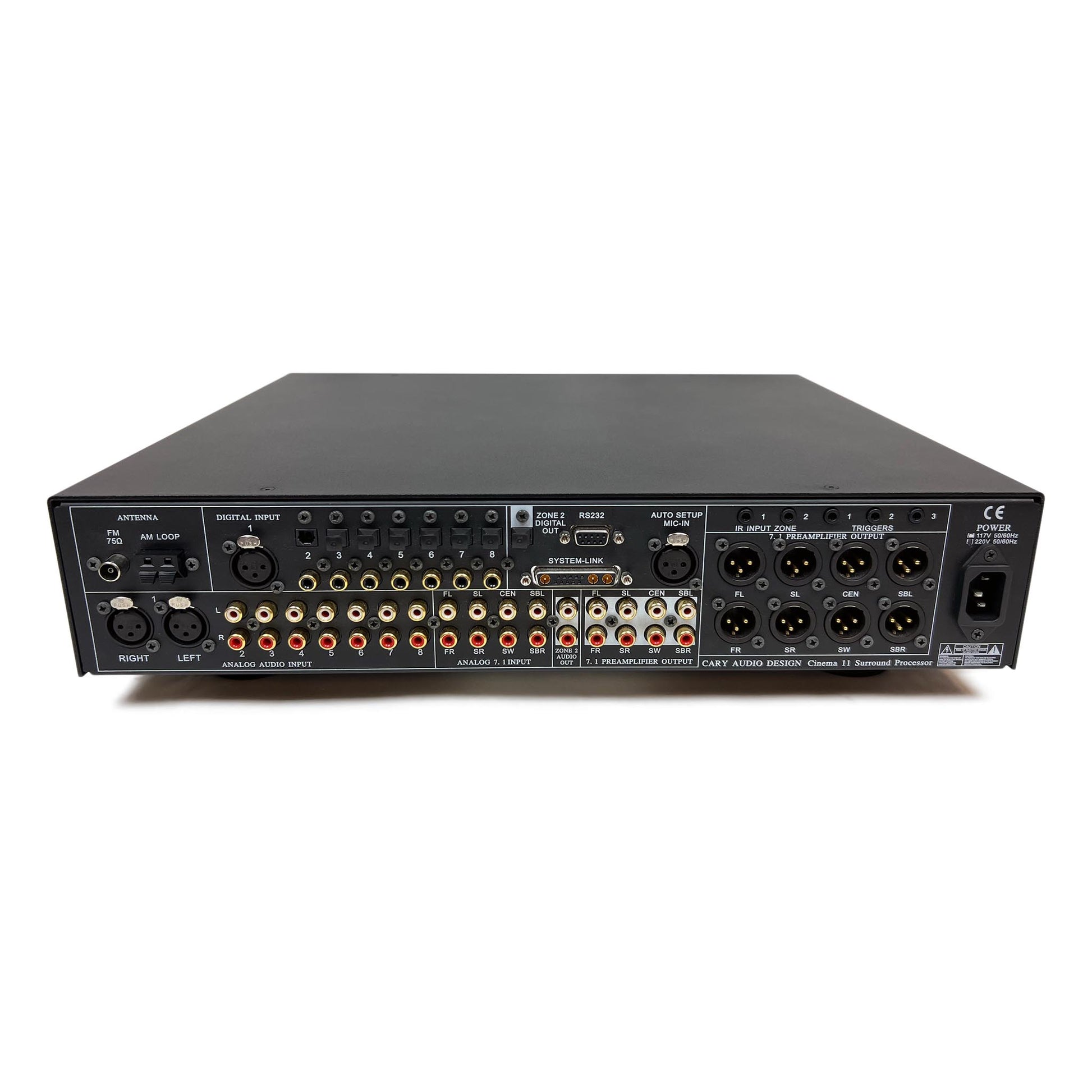

• 8 inputs: one balanced and seven single-ended with RCA connectors, including S/PDIF coaxial, S/PDIF optical, and analog pairs
• 7.1-channel analog audio input connections
• Analog bypass option for stereo and 7.1-channel analog audio inputs
• Automatic switching between digital and analog audio input connectors
• 24-bit/192 kHz D/A converters for all Main Zone audio channels
• Automatic and manual calibration of speaker distances and output levels
• 32-bit DSP engines
• CES 7.1 decoding
• Dolby Digital Surround EX, Dolby Pro Logic IIx, and Dolby Pro Logic II decoding
• dts 96/24, dts NEO:6, and dts-ES (discrete and matrix) decoding
• RS-232 connector for flash memory software upgrades and configuration tool downloads
• Optical digital audio output connector for Zone 2 (Toslink)
• 3 12 V output connections with 1/8" mini plug connectors
• 2 IR input connections
• XLR microphone input connection
• 7.1 balanced audio output connectors for Main Zone
