Aurender NH10 Network Hub

OCXO master clock, pure linear power supply, galvanic isolation, and precision noise suppression for reference-level streaming performance

The NH10 is an audiophile-grade network hub engineered to elevate digital audio playback to an entirely new level. Through clean power delivery, precise timing, and noise-free signal transmission, it ensures music is reproduced with remarkable accuracy and emotional impact. Unlike conventional network hubs, the NH10 embodies advanced design principles and meticulous fine-tuning, setting a new standard in digital audio networking.

At its core, the NH10 features an ultra-stable OCXO (Oven-Controlled Crystal Oscillator) with frequency stability rated at <0.005 ppm. Controlled by FPGA synchronization, all internal operations are aligned to a single master clock, eliminating timing discrepancies. For even greater precision, a BNC master clock input (10 MHz, 50 ohm) allows integration with external reference clocks.

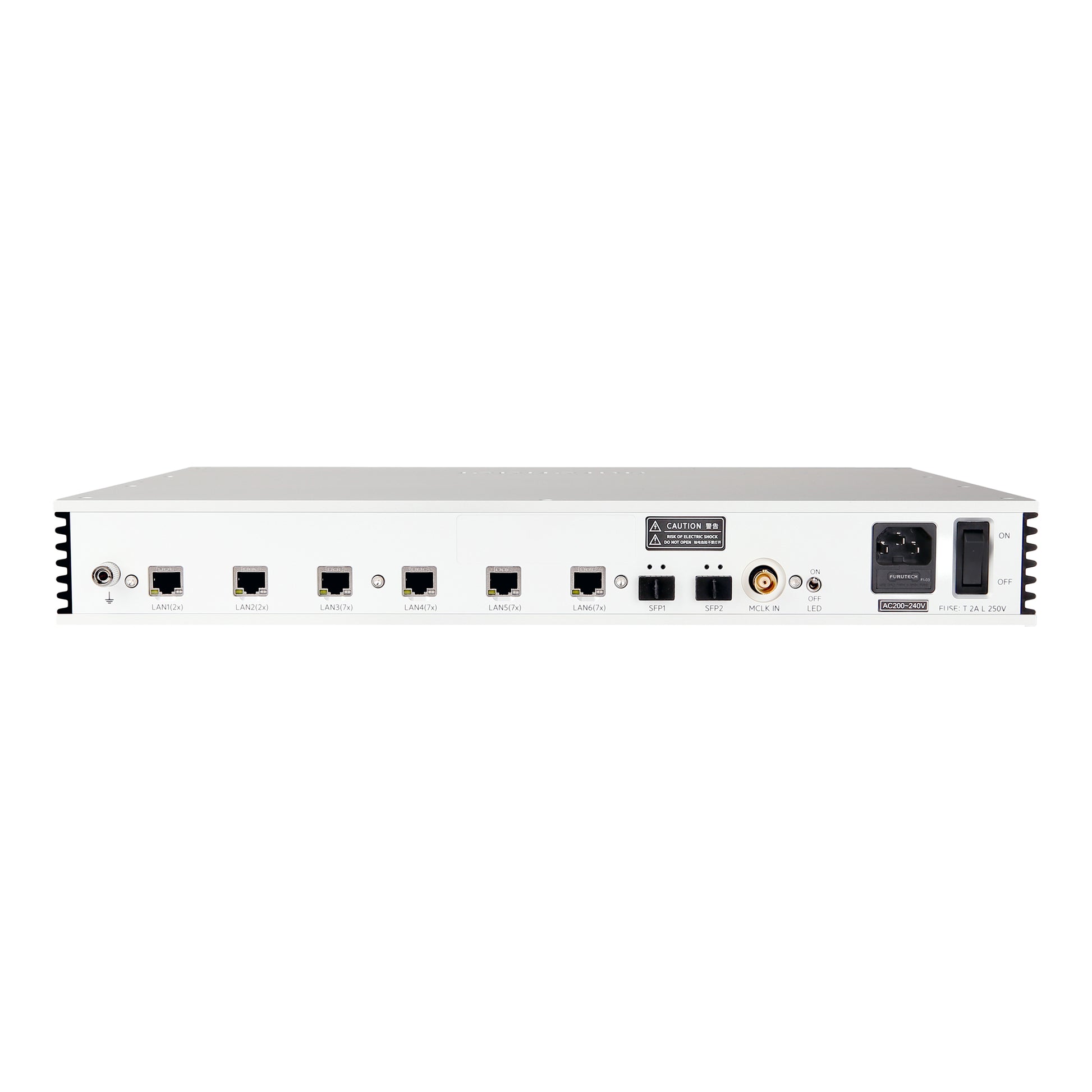

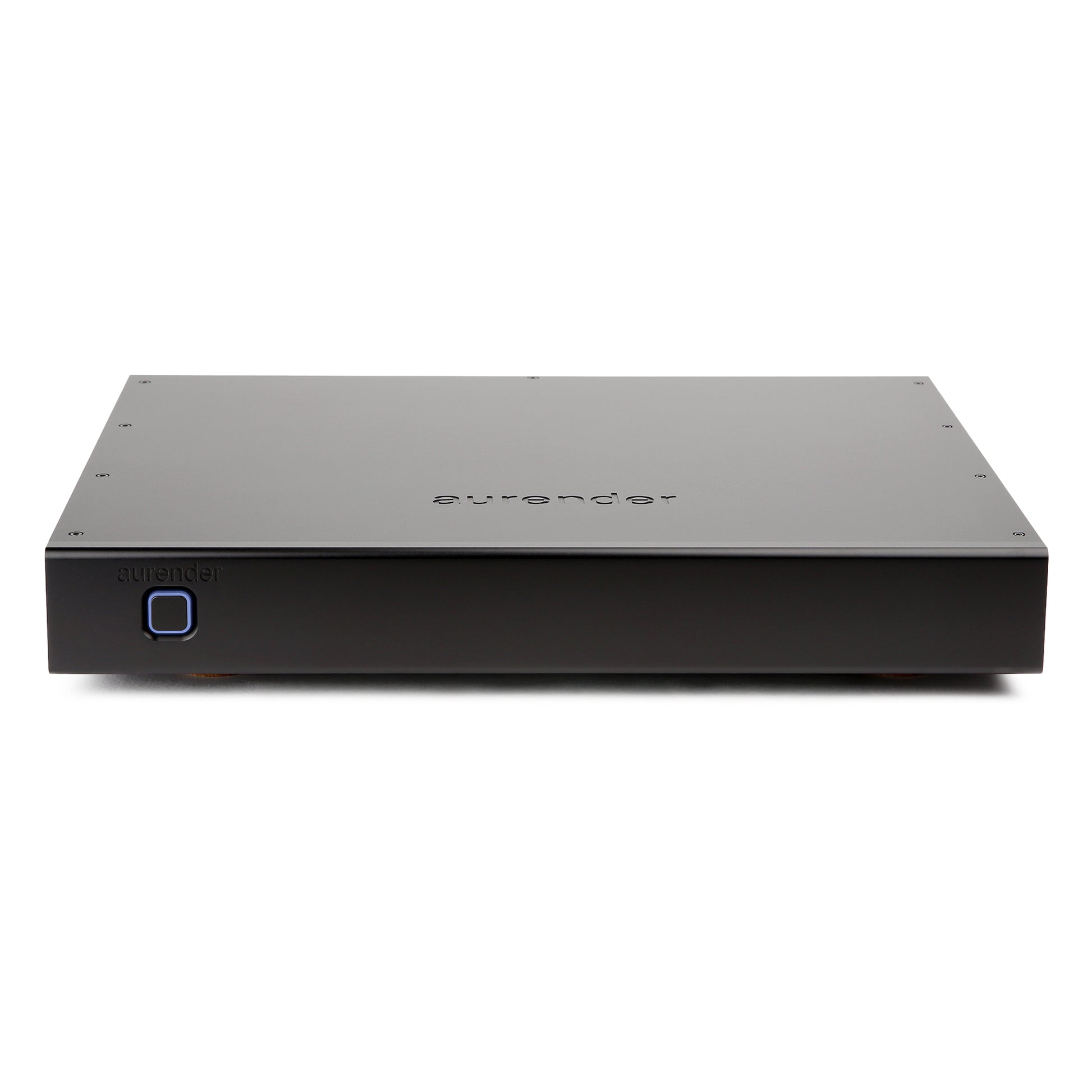

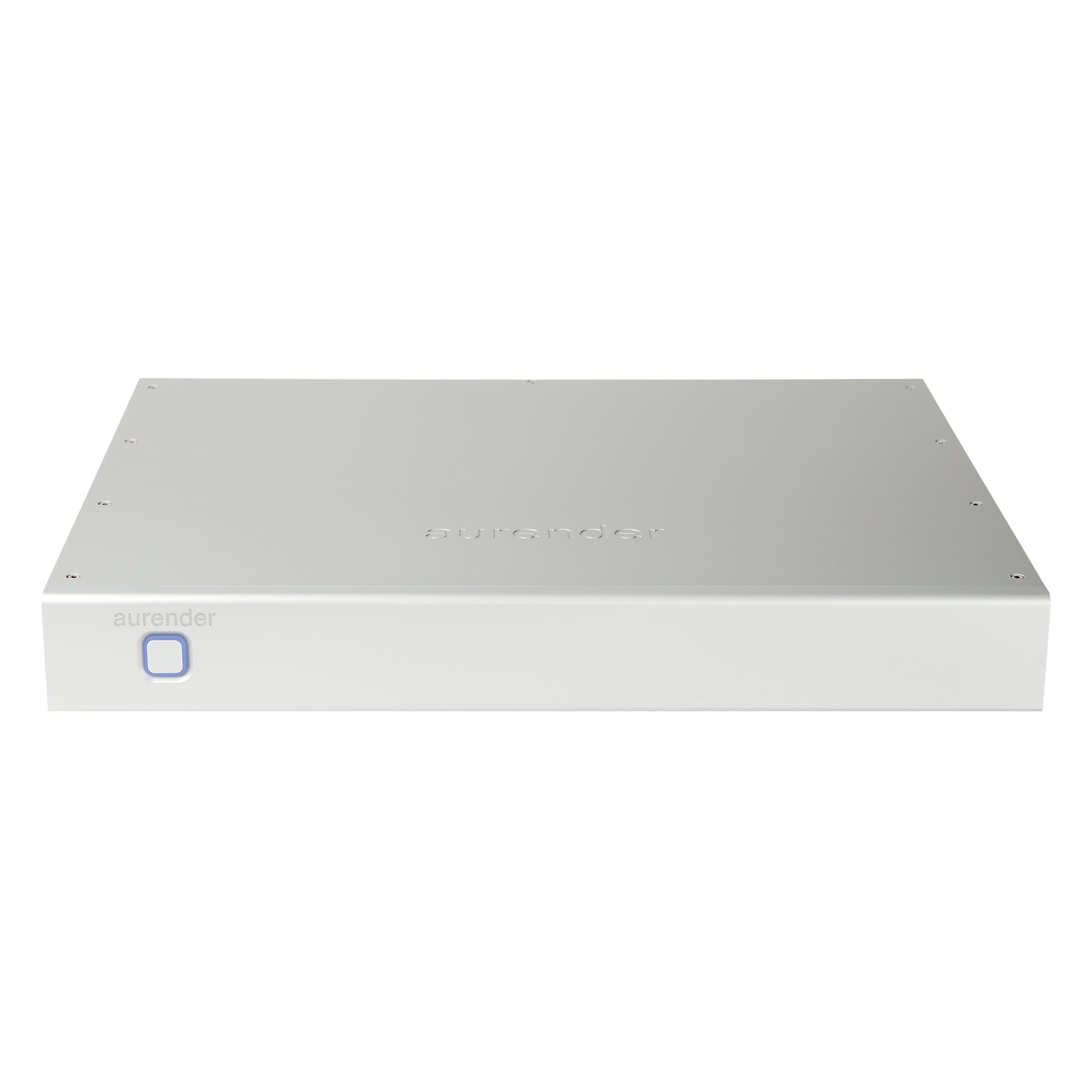

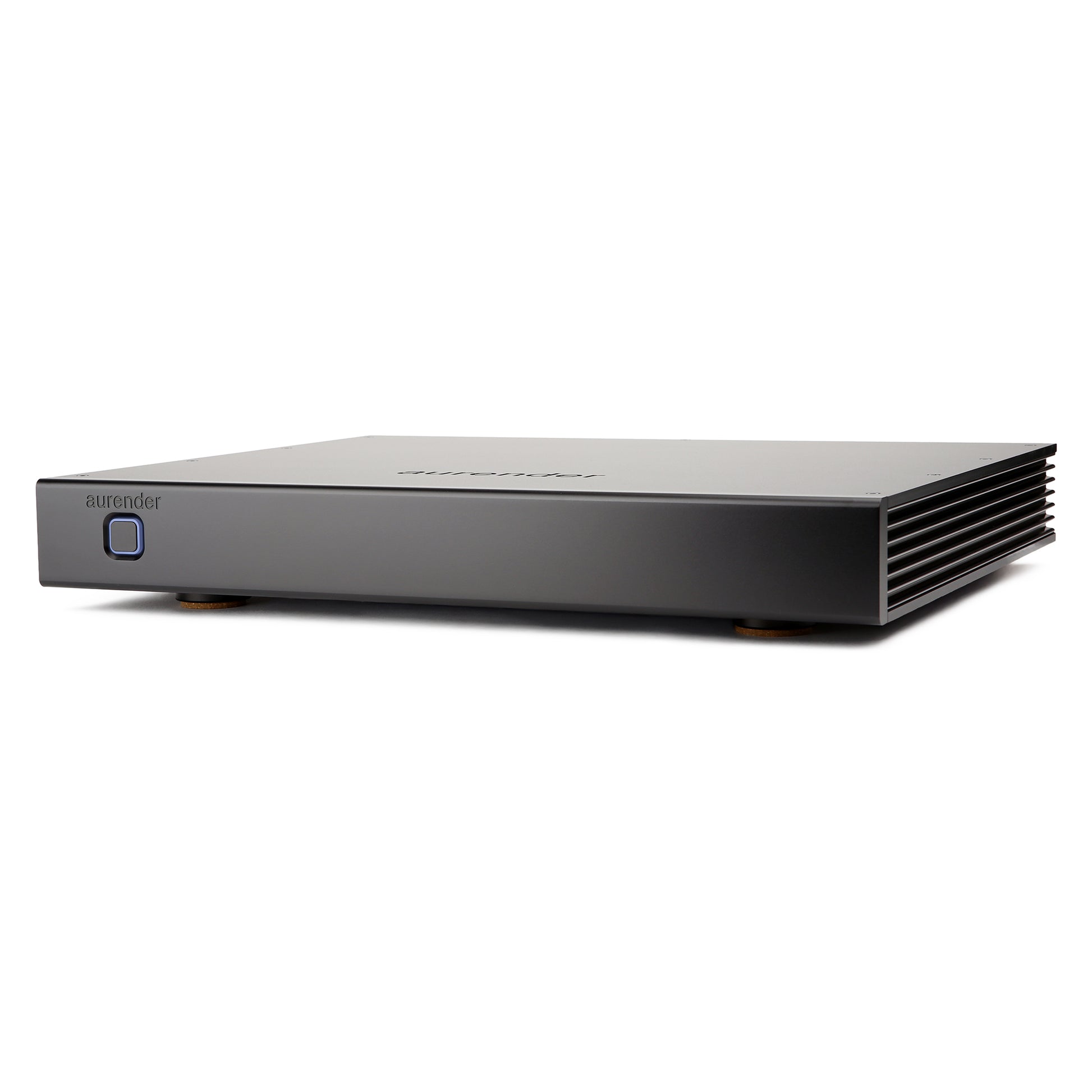

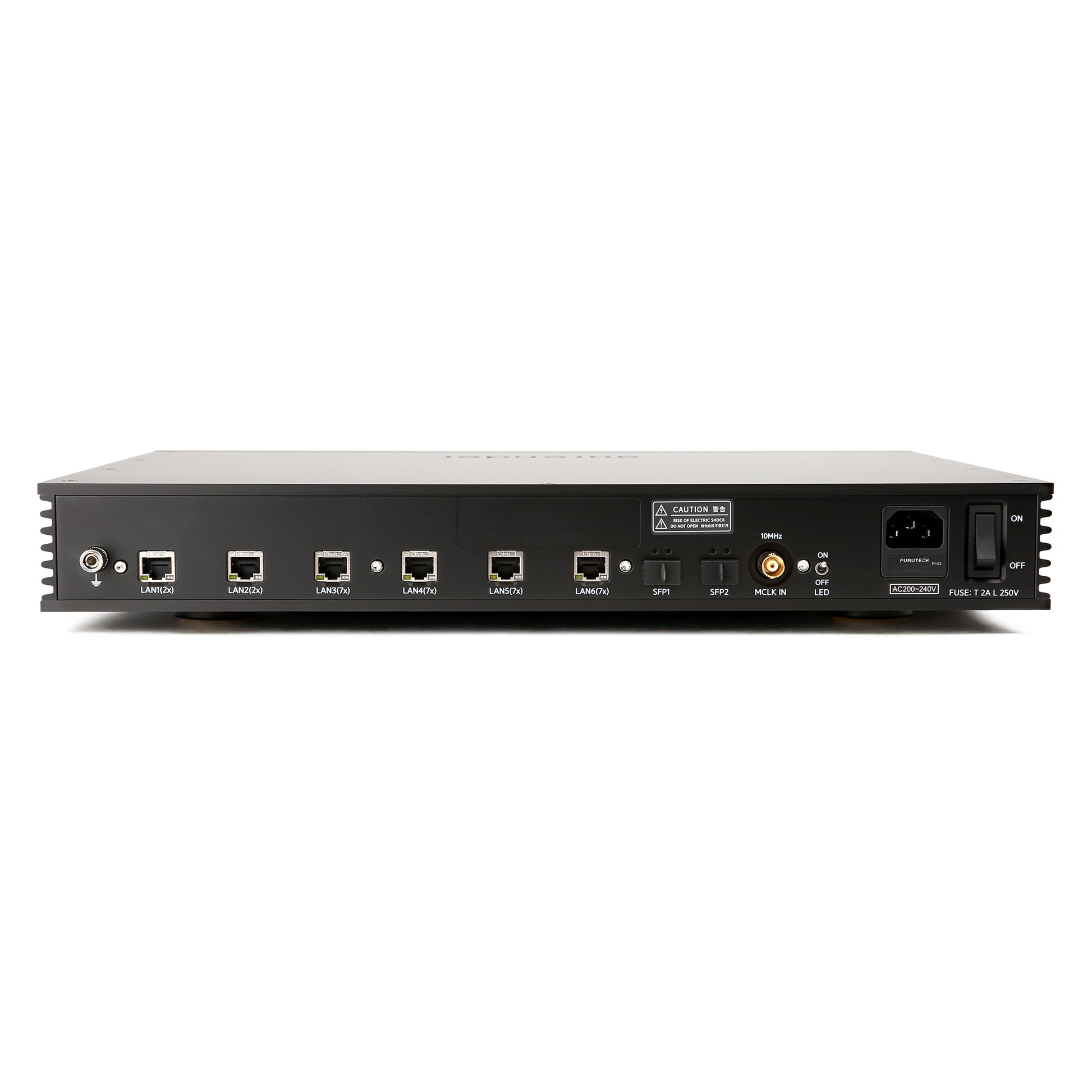

The NH10’s precision-machined aluminum chassis shields against vibration and electrical interference, ensuring a quiet and stable operating environment. An LED OFF switch further reduces noise from port activity indicators, while each RJ-45 port incorporates advanced filtering for signal purity. Optically isolated SFP ports provide complete galvanic isolation, eliminating electrical coupling between devices and ensuring uncompromised data transmission.

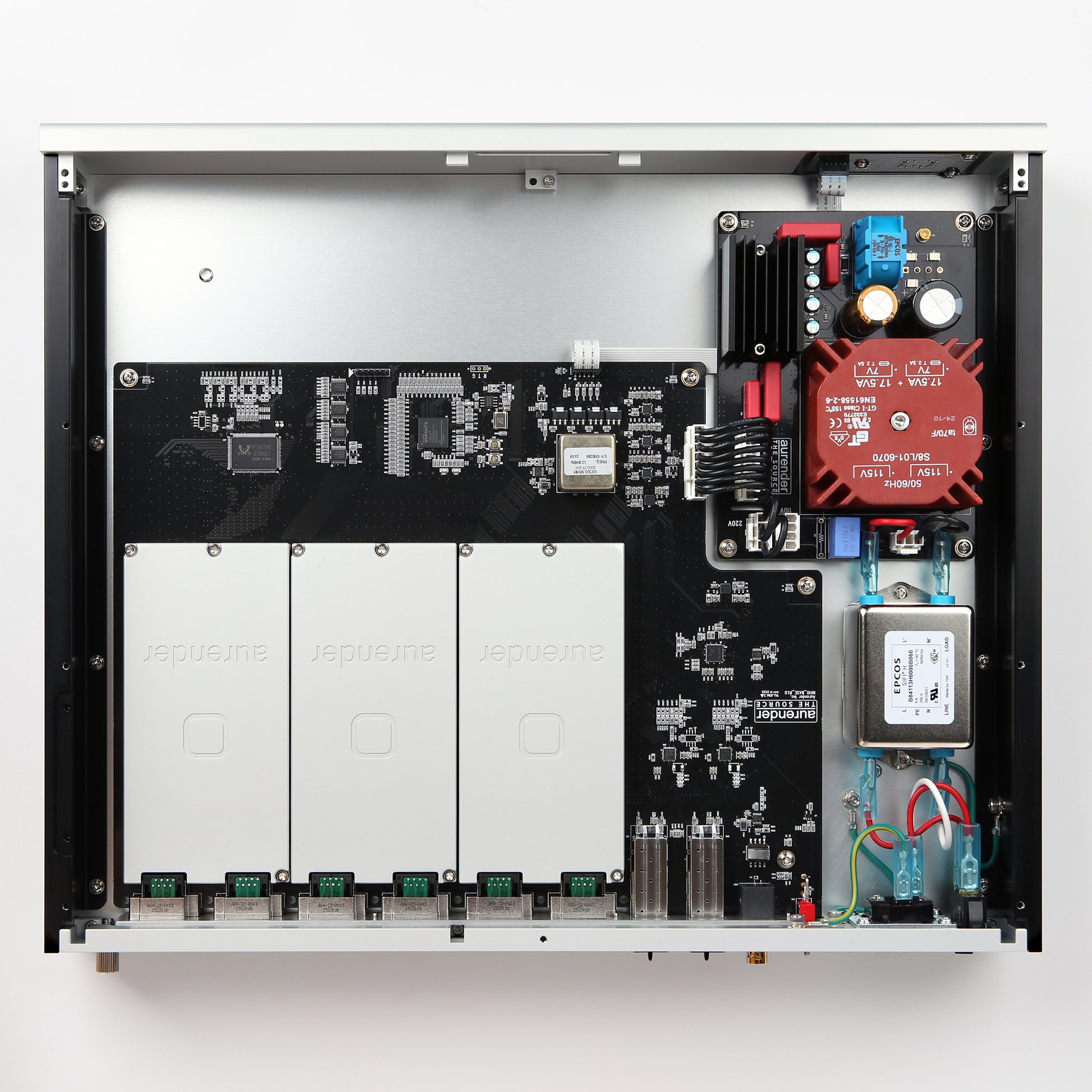

Every circuit within the NH10 is powered exclusively by linear regulation—without noisy DC-to-DC converters. This approach provides exceptionally clean power delivery, surpassing many competing products and minimizing power-related distortions at the source. The robust aluminum chassis not only enhances durability but also contributes to acoustic performance, providing a solid foundation for uncompromised sound quality.

Features

• Audiophile-grade network hub
• Exceptional jitter reduction
• Outstanding noise suppression
• Pure linear power supply
• Comprehensive galvanic isolation
• Premium build quality

Specifications

Standards Compliance: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z

Data Transfer Rate: LAN1–6: 100 Mbps / 1000 Mbps; SFP1–SFP2: 100 Mbps / 1000 Mbps

Number of Ports (Filter): LAN Ports: LAN1–2 (2x), LAN3–LAN6 (7x); SFP Ports: 2

Connector Type: RJ-48 8-pin, SFP

Transmission Distance: 100 m (max)

OCXO Specification: Frequency stability < 0.005 ppm

Master Clock Input: 10 MHz, 0.7 Vrms, BNC (50 ohm)

Fuse: 2 A, 5 mm x 20 mm, slow-blow

Power Consumption (Stand-by, Warm-up, Run): 3.1 W, 26 W, 20 W

Dimensions (WHD): 16.9" x 2.7" x 14.0" (430 x 68 x 355 mm)

Weight: 17.6 lb. (8 kg)
