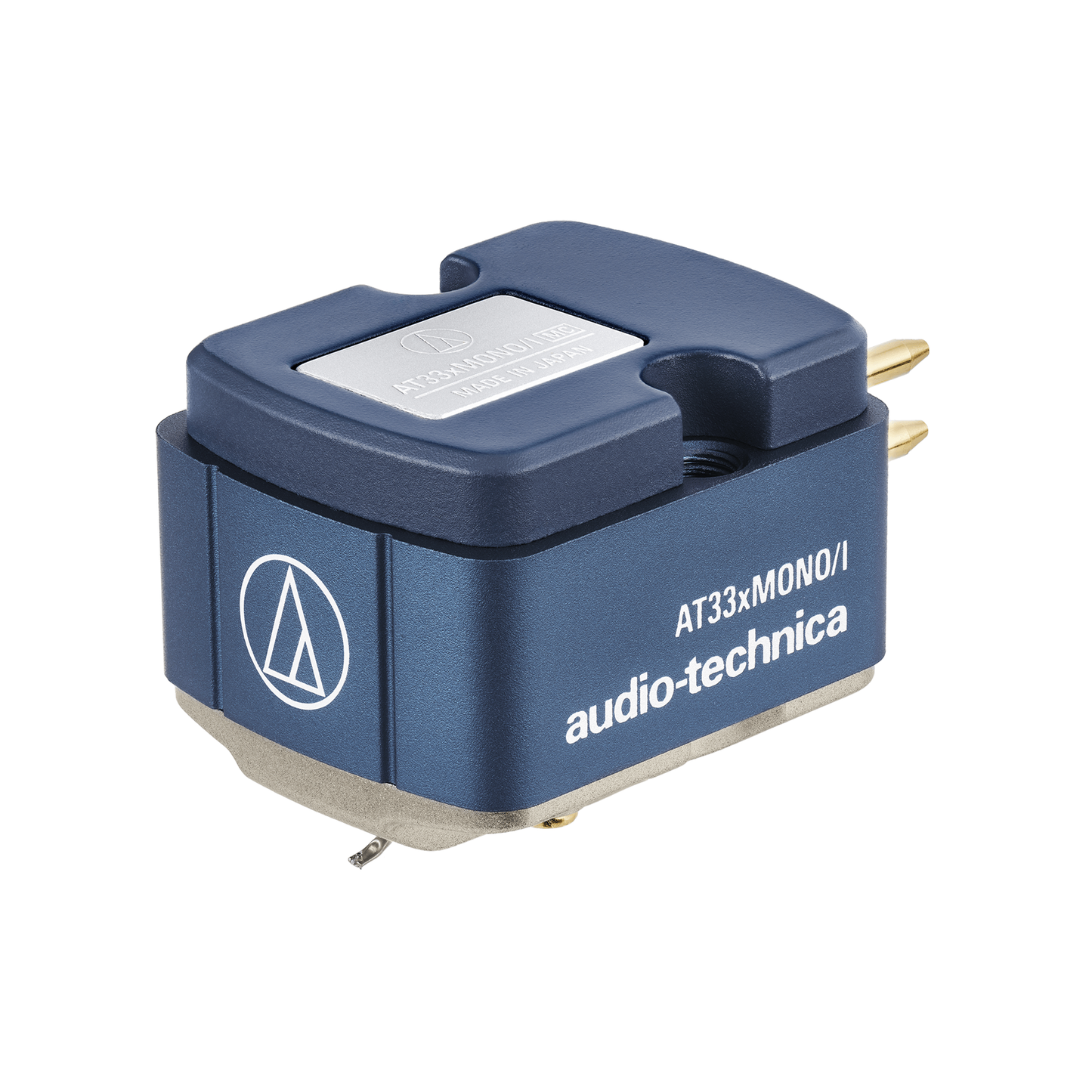

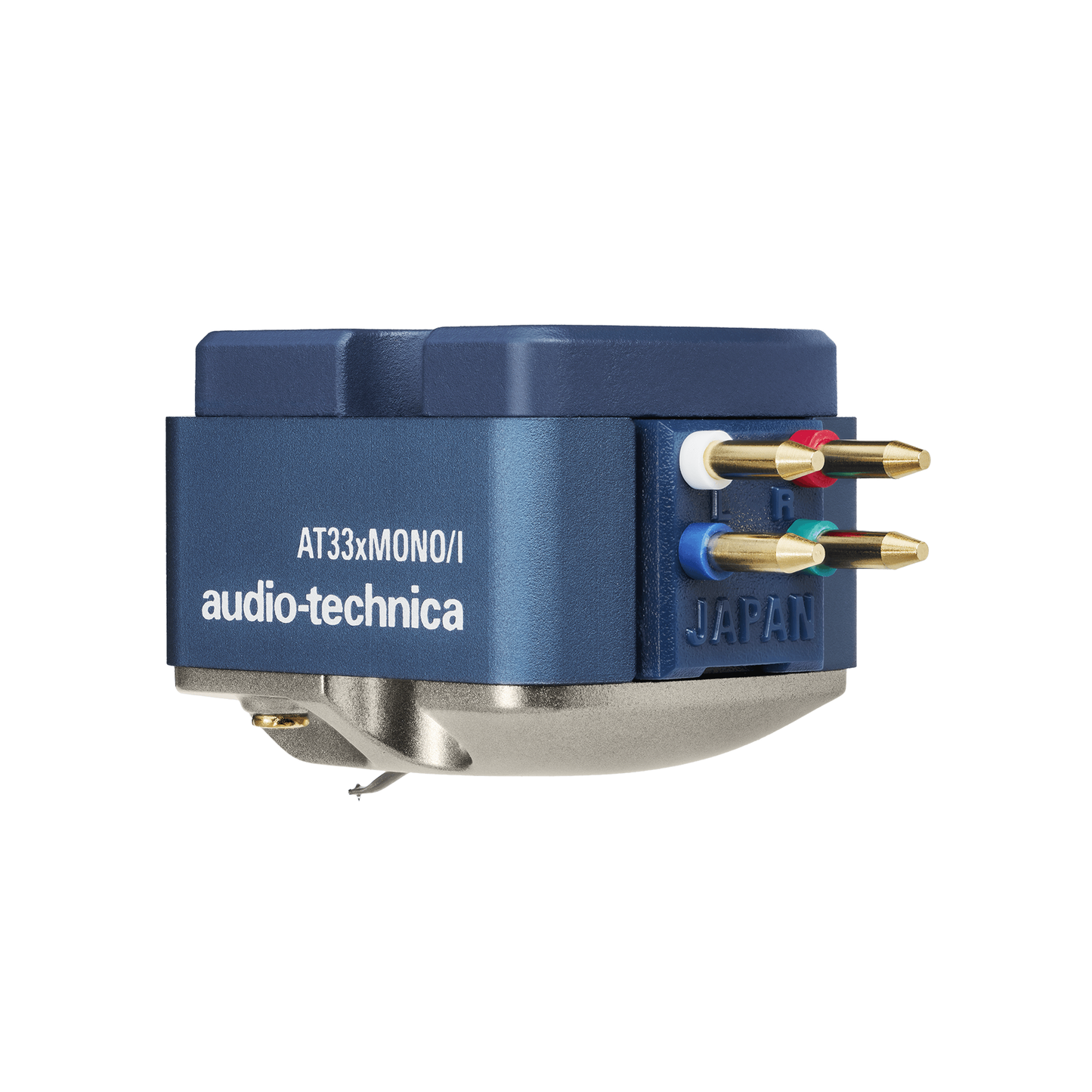

Audio-Technica AT33xMONO/I Moving-Coil Mono Cartridge

Dual moving coil with horizontal PCOCC coils, 0.65 mil conical stylus with duralumin cantilever, safe on stereo records

The AT33xMONO/I is a purpose-built mono cartridge engineered for microgroove vinyl (i.e. not shellac records).

Its rigid body uses Hanenite, Audio-Technica's proprietary high-damping material. The voice coils are arranged horizontally so the generator responds only to horizontal groove motion—the information that encodes mono. Compliance is still appropriate in the vertical plane, making it safe to use on stereo records.

A 0.65 mil conical stylus is mounted to a hard duralumin cantilever for dependable tracking and stable tone. The PCOCC (Pure Copper by Ohno Continuous Casting) coils provide a clean signal path, and the design’s rejection of vertical artifacts helps the cartridge ignore many of the strain components that come from groove wear and light damage, yielding cleaner mono playback than a typical stereo cartridge summed to mono.

Included Accessories

• Non-magnetic screwdriver
• 2 washers
• Cartridge installation screws (M2.6, 8 mm × 2, 10 mm × 2, 13 mm × 2)
• Plastic protector
• Brush

Specifications

Type: Moving coil (dual), mono

Frequency Response: 20 Hz–30 kHz

Output Voltage (1 kHz, 5 cm/s): 0.42 mV

Output Channel Balance (1 kHz): 1 dB

Horizontal/Vertical Output Ratio: 25 dB

Vertical Tracking Angle: 20°

Vertical Tracking Force: 2.0 g–2.4 g (2.2 g standard)

Recommended Load Impedance: More than 100 ohms (with head amplifier)

Coil Impedance (1 kHz): 10 ohms

DC Resistance: 10 ohms

Coil Inductance (1 kHz): 27 µH

Stylus Shape: 0.65 mil conical

Cantilever: Duralumin pipe

Static Compliance: 14 × 10⁻⁶ cm/dyne

Dynamic Compliance (100 Hz): 6 × 10⁻⁶ cm/dyne

Mounting: Half-inch

Dimensions (WHD): 0.65" × 0.63" × 1.03" (16.6 × 16.1 × 26.1 mm)

Weight: 10.1 g
