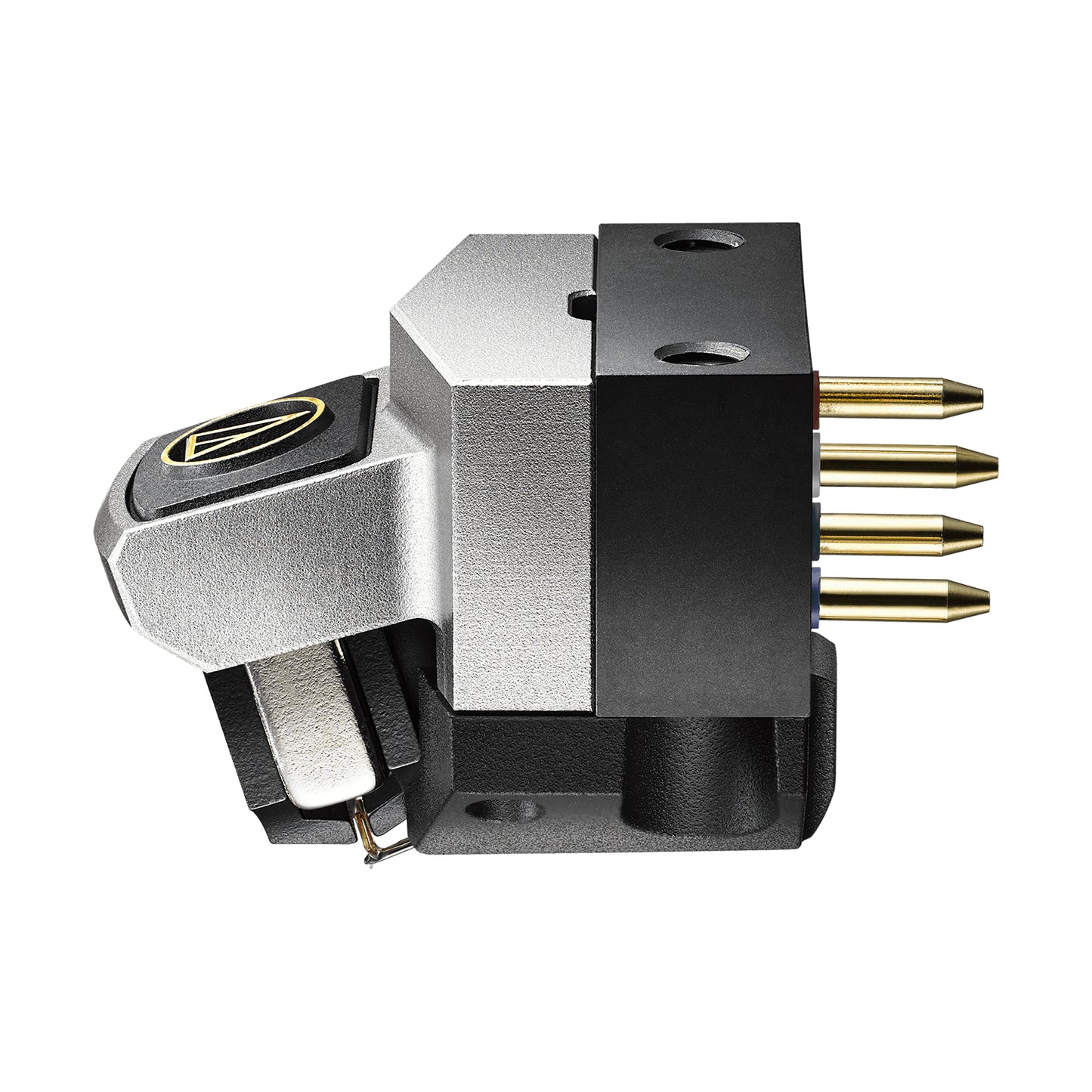

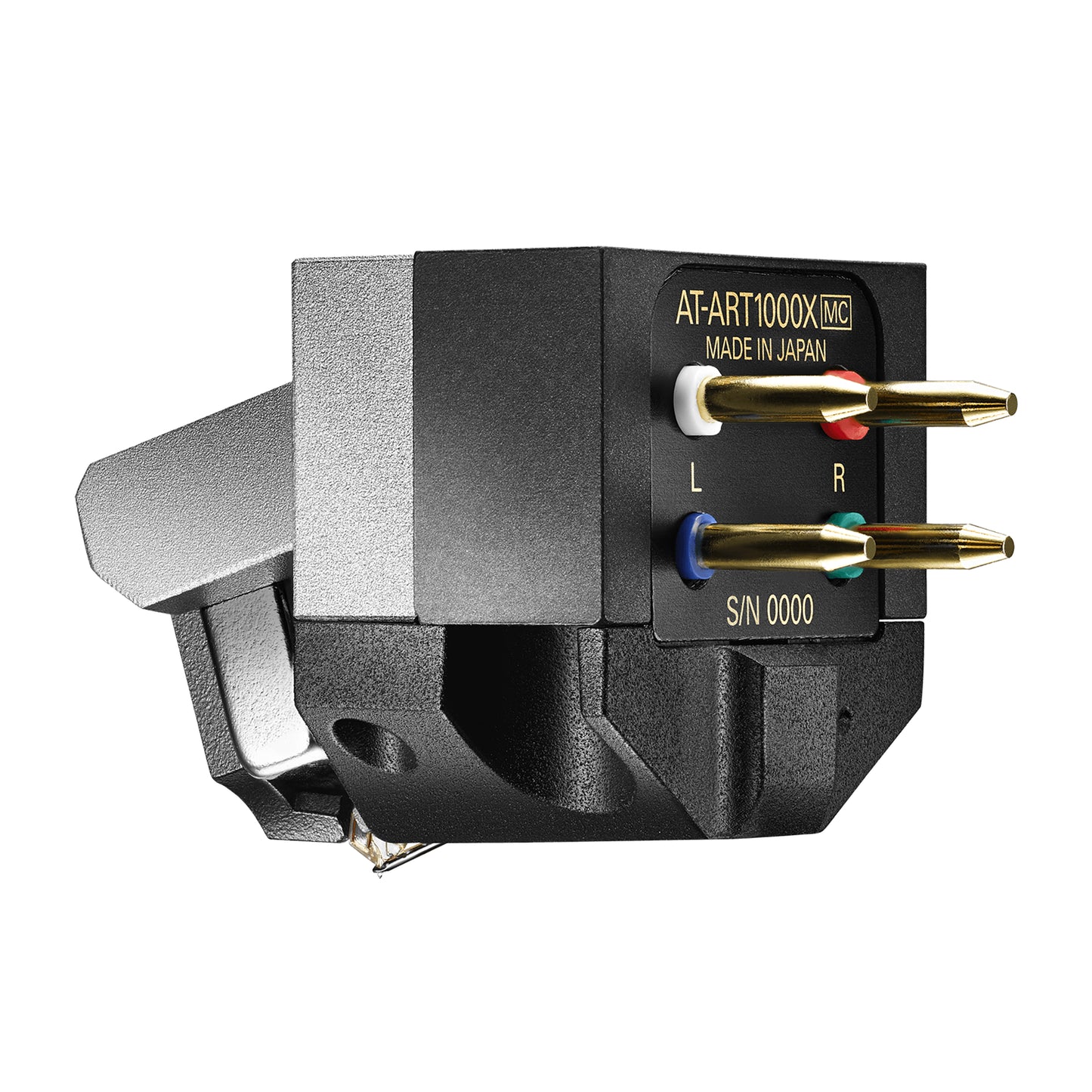

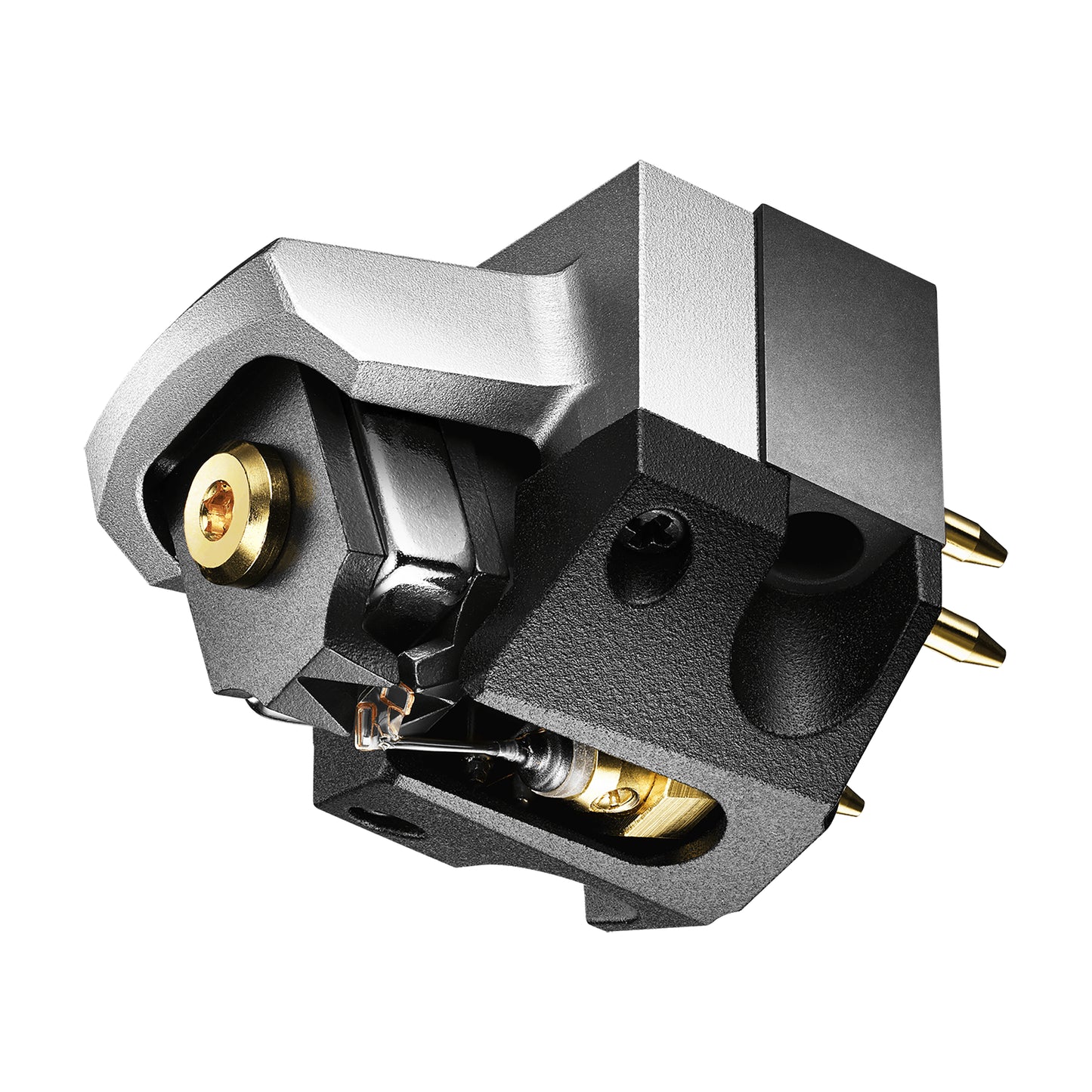

Audio-Technica AT-ART1000X Direct Power Moving Coil Cartridge

Audio-Technica’s transducer and cartridge technologies are acclaimed both in Japan and worldwide not only for their engineering precision and audio quality but also for their ability to provide a heightened listening experience.

The AT-ART1000 direct power stereo MC cartridge used a novel structure with the generator coils placed just above the stylus tip. This follow-up model, the AT-ART1000X, takes this philosophy and design to another level. A more refined direct power system enables three-dimensional spatial expression.

The AT-ART1000X has been developed, and manufactured in Japan, utilizing cutting-edge materials and design elements.

Included Accessories

  • Wooden case (Wooden box)
  • Non-magnetic screwdriver
  • Washer x 2
  • Protector
  • M2.6 cartridge screws (2 x 5 mm, 2 x 8 mm, 2 x 10 mm, 2 x 12 mm)
  • Brush

Specifications

Type: Direct power system, non-magnetic core coil (MC) type

Stylus: Special line contact

Curvature Radius: 1.5 x 0.28 mil

Cantilever: 0.26 mm boron

Frequency Response: 15 to 30,000 Hz

Output Voltage: 0.22 mV

Channel Separation: 30 dB

Output Balance: 0.5 dB

Tracking Force: (Refer to “Tracking force information” included in the box)

Coil Impedance: 3.5 ohm

DC Resistance: 3.5 ohm

Recommended Load Impedance: ≥ 30 ohm

Coil Inductance: ≤ 1 μH

Static Compliance: 20 x 10-6 cm/dyne

Dynamic Compliance: 9 x 10-6 cm/dyne

Vertical Tracking Angle: 19°

Dimensions (HWD): 17.3 x 17 x 25.5 mm

Bolt Thread: 2 x M2.6

Weight: 11 g
