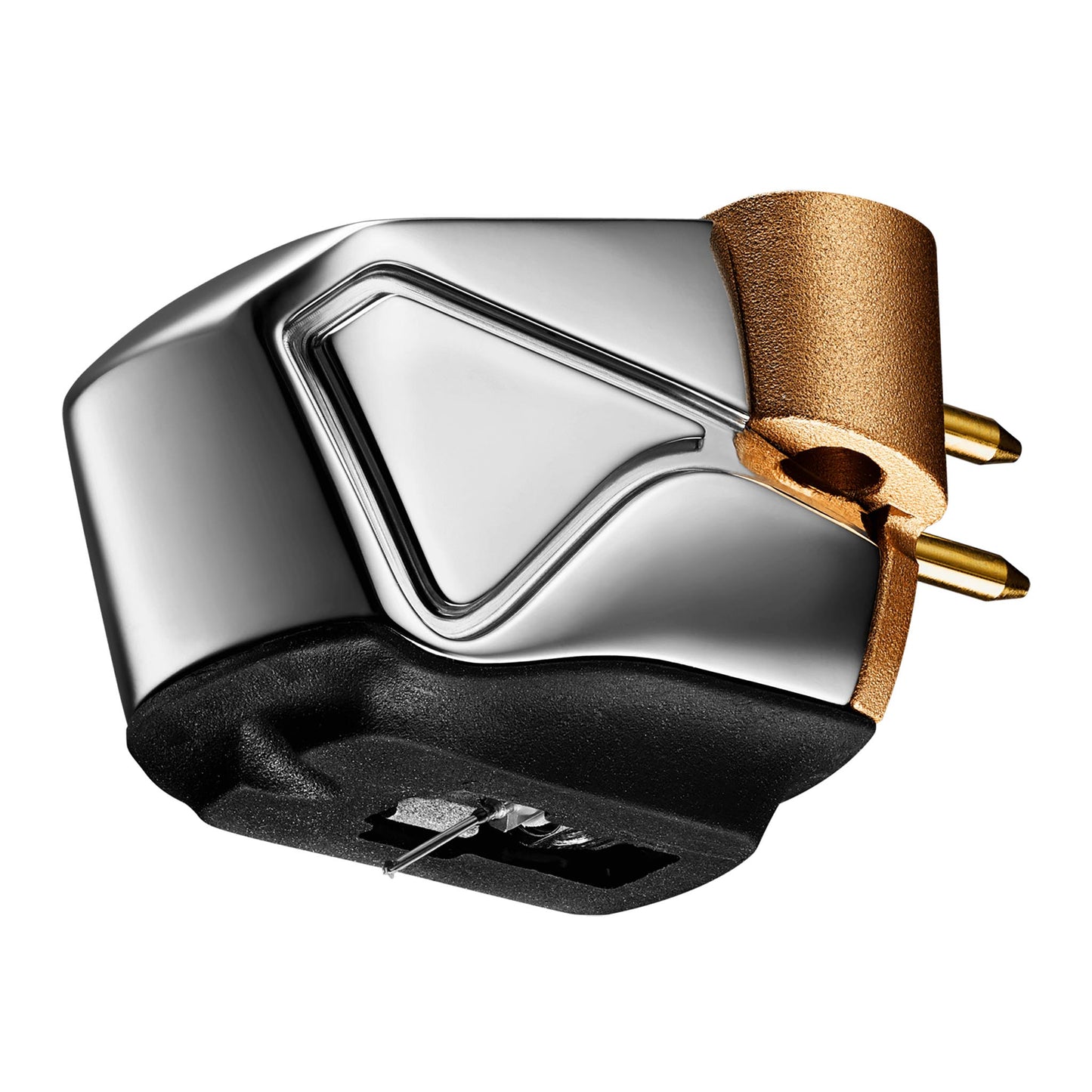

Audio-Technica ART-20 Dual Moving Coil Cartridge

Audio-Technica ART-20 Dual Moving Coil Cartridge

SALE Sold out
Regular price $2,900 In stock now!
Regular price Sale price $2,900 In stock now!
Shipping calculated at checkout.

This product is an exception to our normal return policy.

Product questions? Found a lower price?

Let us know: 909.931.9686 or chat.

This item qualifies to earn HiFives. What's a HiFive?

View full details

Audio Technica ART-20 Dual Moving Coil Cartridge

Audio-Technica is pleased to introduce the AT-ART20, the latest cartridge in the ART Series. The two main goals in developing the AT-ART20 were to provide superlative analog sound reproduction and optimize the performance and benefits of a magnetic core cartridge.

Included Accessories

  • Non-magnetic screwdriver
  • Brush
  • Washer × 2
  • Cartridge installation screws: 2 x M2.6, 2 x 8 mm, 2 x 10 mm, 2 x 12 mm
  • Protector

Specifications

Stylus: Special line contact

Stylus Curvature Radius: 1.5 × 0.28 mil

Cantilever: 0.28 mm (0.011”) diameter solid boron

Threaded Hole: 2 x M2.6

Frequency Response:20 to 50,000 Hz

Channel Separation (1 kHz): 30 dB

Vertical Tracking Angle: 20°

Vertical Tracking Force: 1.6 to 2.0 g (1.8 g standard)

Stylus Construction: Nude

Recommended Load Impedance (When head amplifier connected): ≥ 100 ohm

Coil Impedance (1 kHz): 12 ohm

DC Resistance: 12 ohm

Coil Inductance (1 kHz): 25 μH

Output Voltage (1 kHz, 5 cm/sec.): 0.55 mV

Static Compliance: 23 × 10-6 cm/dyne

Dynamic Compliance: 13 × 10-6 cm/dyne (100 Hz)

Dimensions (HWD): 17.3 ×16.8 ×26.6 mm

Cartridge Weight: 9 g
