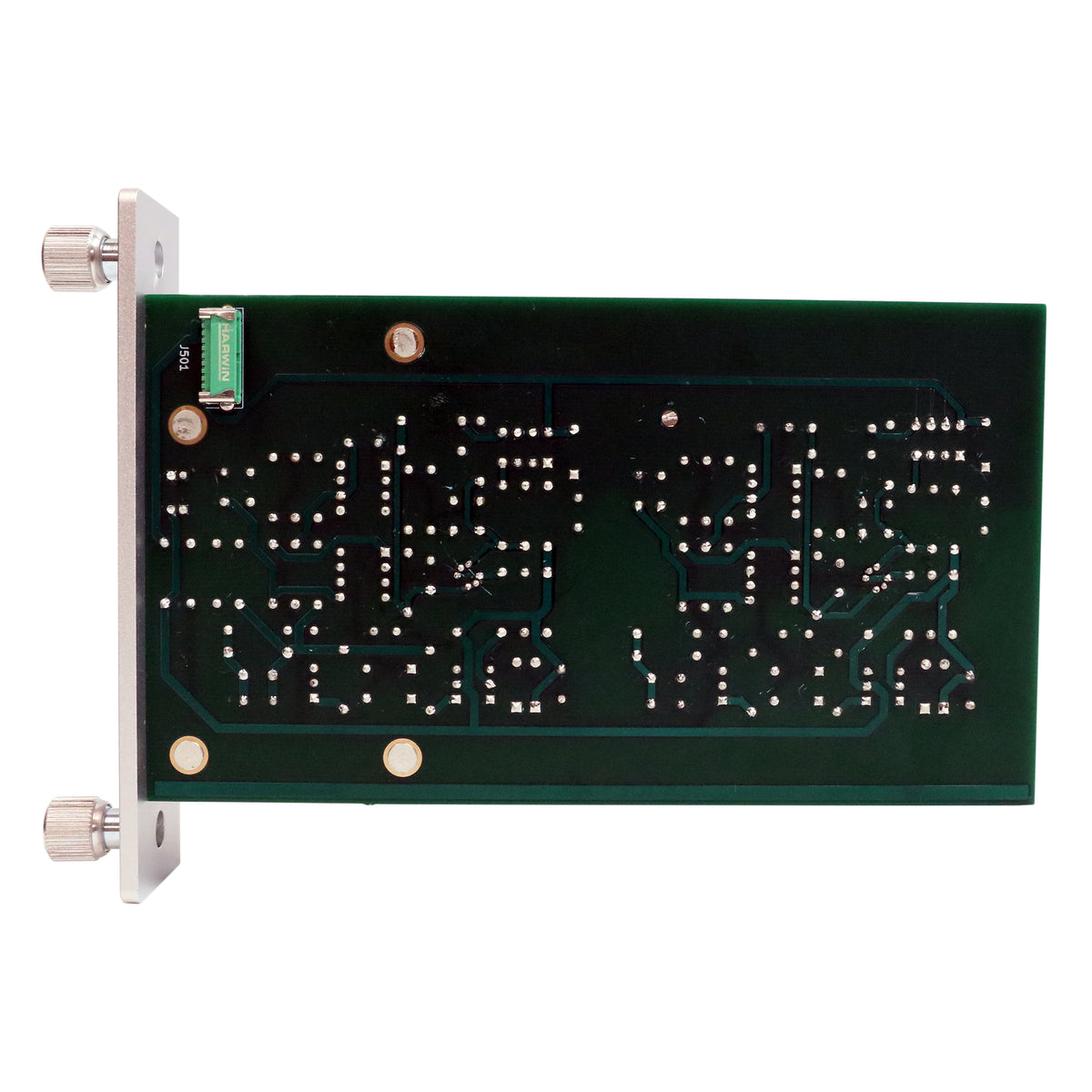

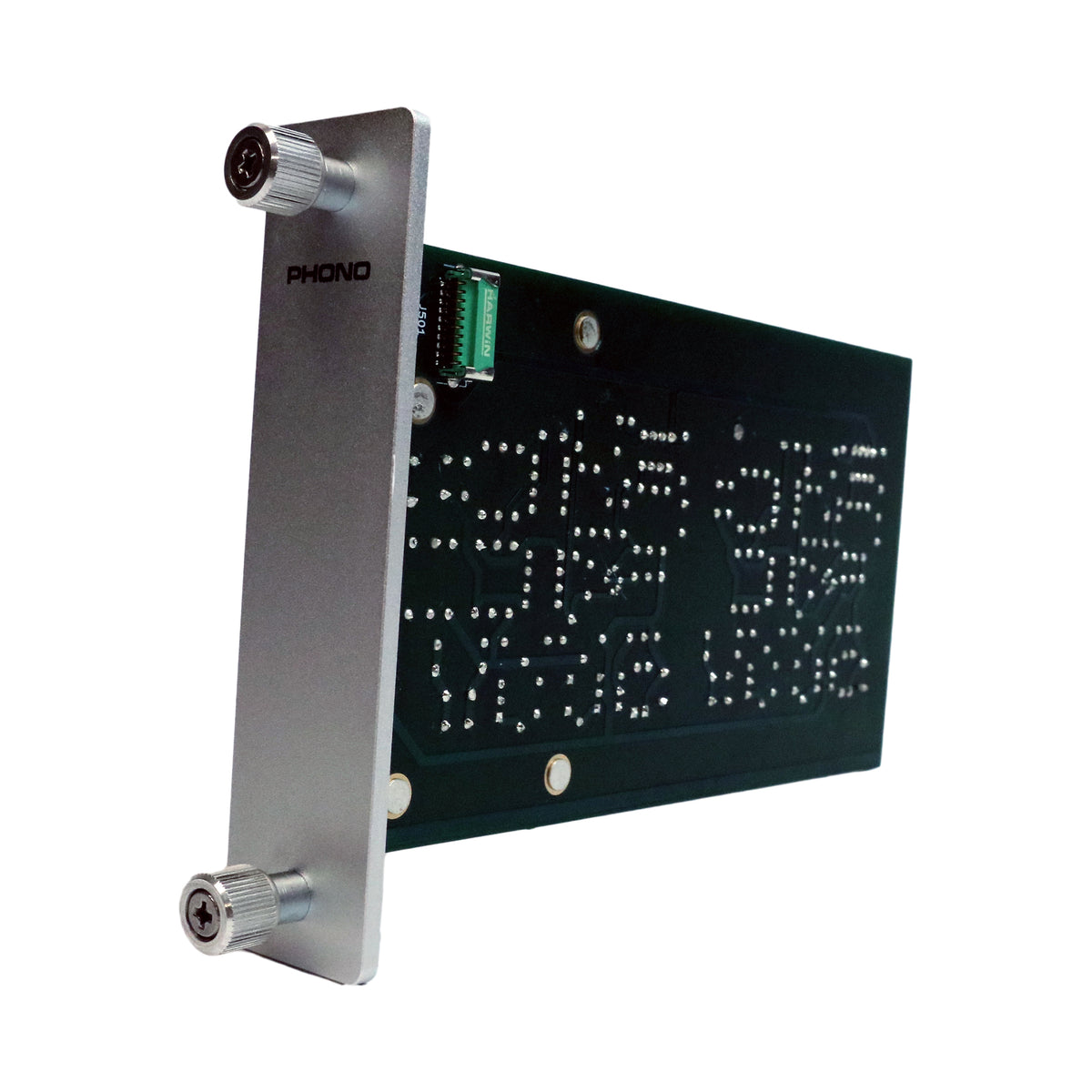

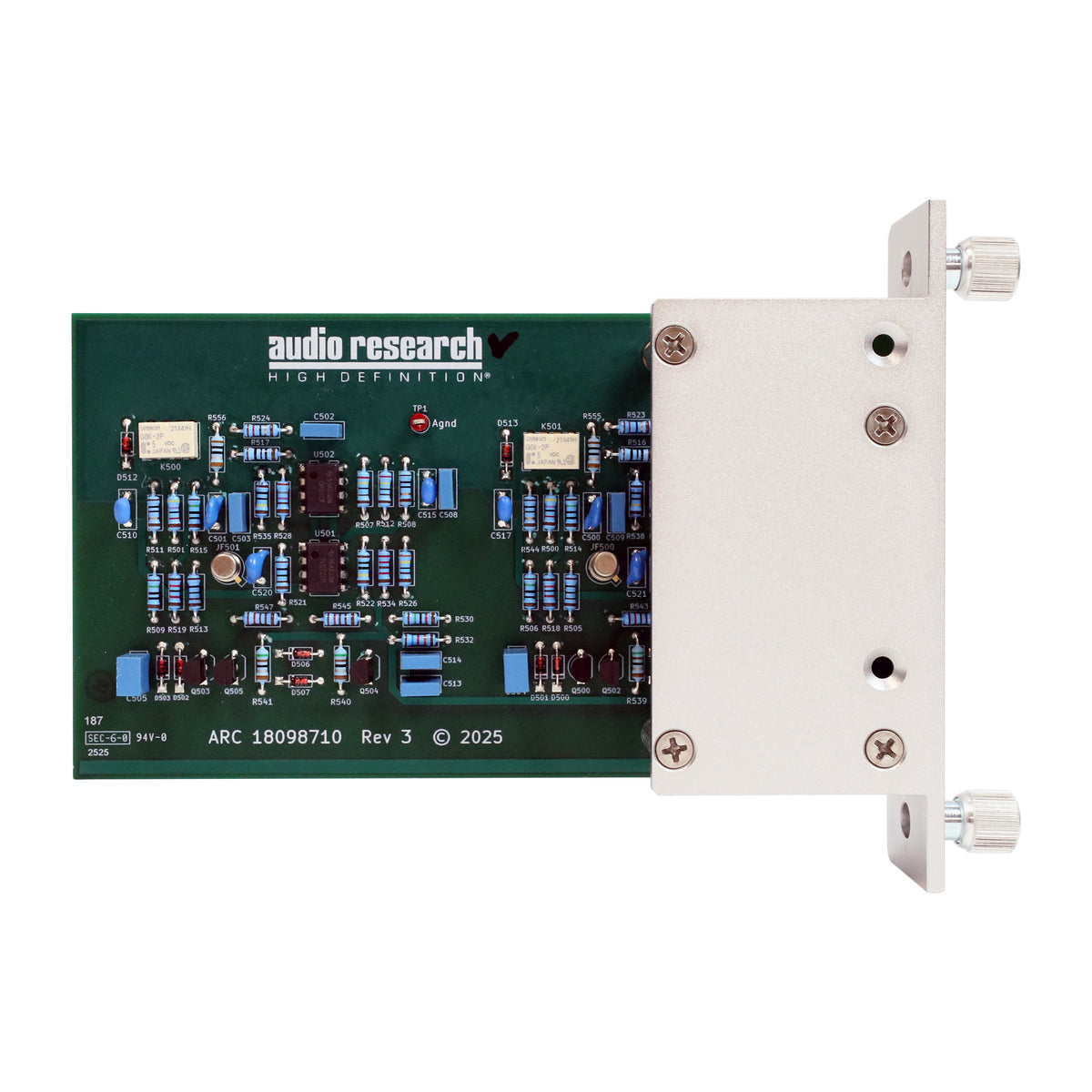

Audio Research Optional Phono Card for LS-2 or LS-3
Moving magnet and moving coil phonostage upgrade with 42 dB and 60 dB gain
The Audio Research Optional Phono Card adds high-quality vinyl playback to the LS-2 and LS-3 preamplifiers without requiring a separate phonostage. Designed for easy installation, this module supports both moving magnet (MM) and moving coil (MC) cartridges, making it a convenient way to integrate a turntable into your Audio Research system.
With 42 dB of gain for MM cartridges and 60 dB for MC cartridges, the card accommodates both high-output and low-output cartridge designs. Input loading is fixed at 47 kilohms with 100 pF capacitance for MM and 150 ohms for MC. Users can switch between MM and MC operation through the preamplifier's interface, which automatically mutes the output and resets the volume to zero when switching modes.
Features
- Compatible with Audio Research LS-2 and LS-3 preamplifiers
- Supports moving magnet and moving coil cartridges
- Selectable MM and MC operation
- 42 dB MM gain and 60 dB MC gain
- Fixed input loading for MM and MC cartridges
- User-installable modular design
- Integrates directly into the preamplifier without requiring a separate component
Specifications
Compatibility: Audio Research LS-2 and LS-3 preamplifiers
Gain (MM, MC): 42 dB, 60 dB
Input Loading (MM): 47 kilohms, 100 pF
Input Loading (MC): 150 ohms (fixed)
Frequency Response (±0.25 dB): 20 Hz–20 kHz
Total Harmonic Distortion: <0.01% at 0.5 V output, 1 kHz
Signal-to-Noise Ratio (MM): >85 dB (A-weighted)
Signal-to-Noise Ratio (MC): >78 dB (A-weighted)
