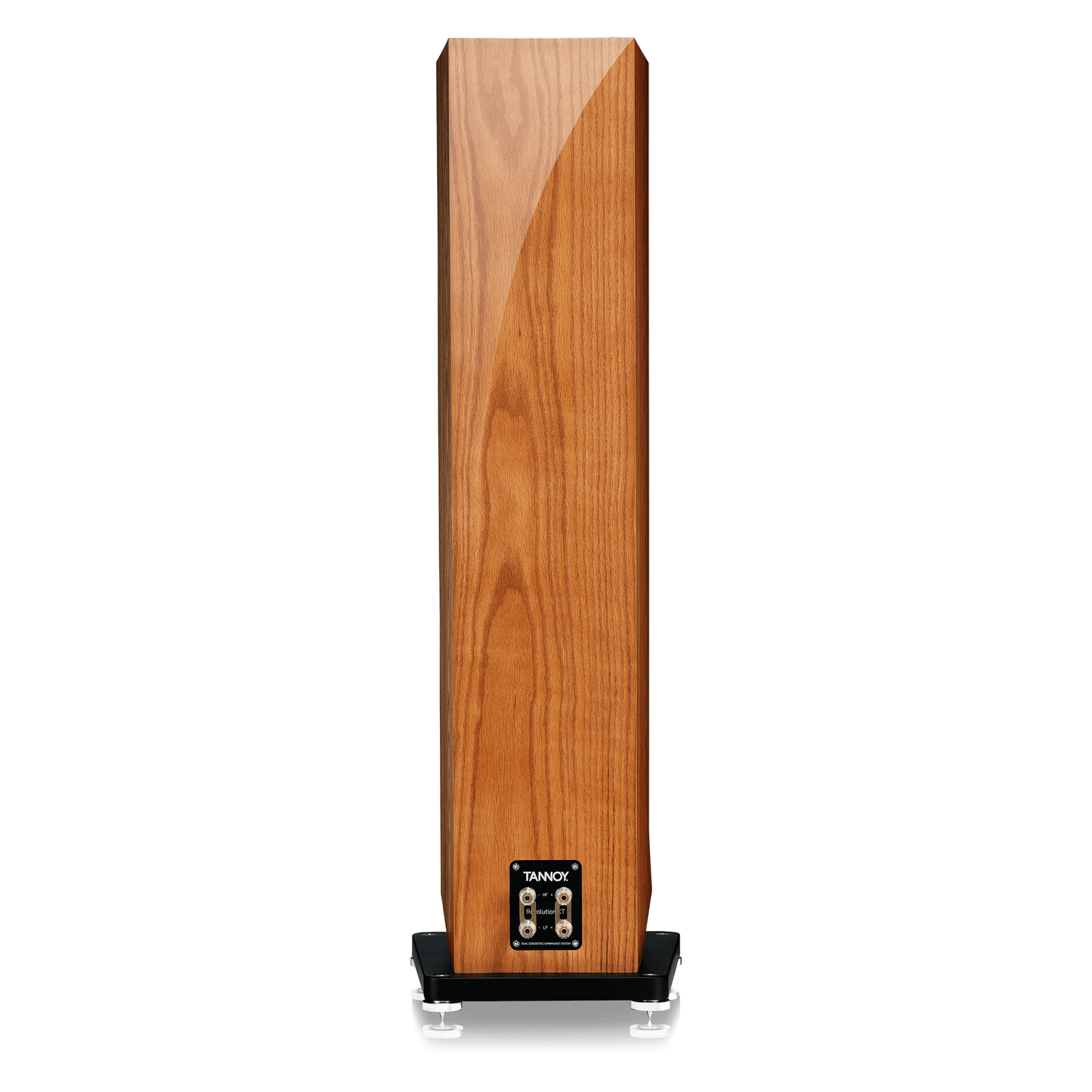

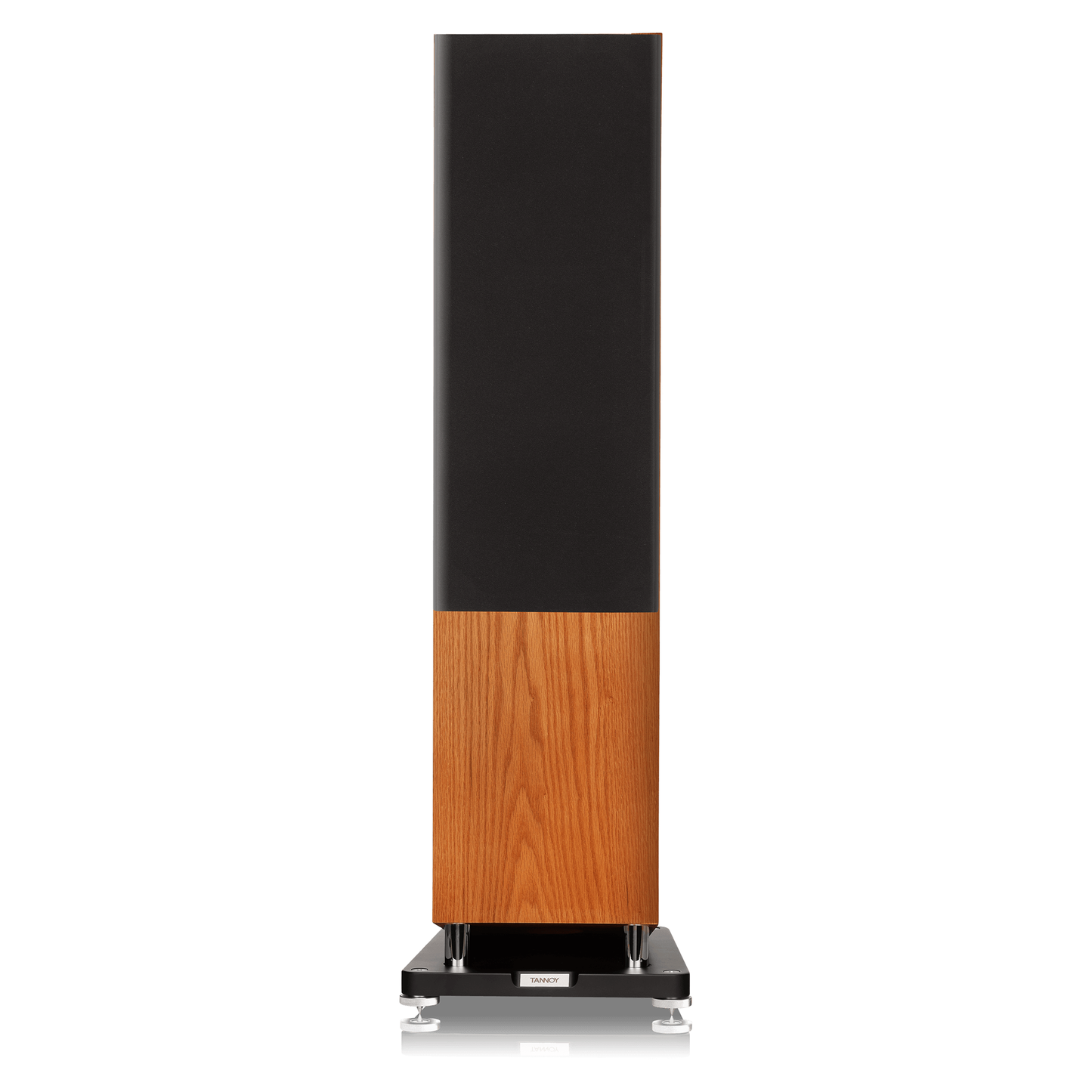

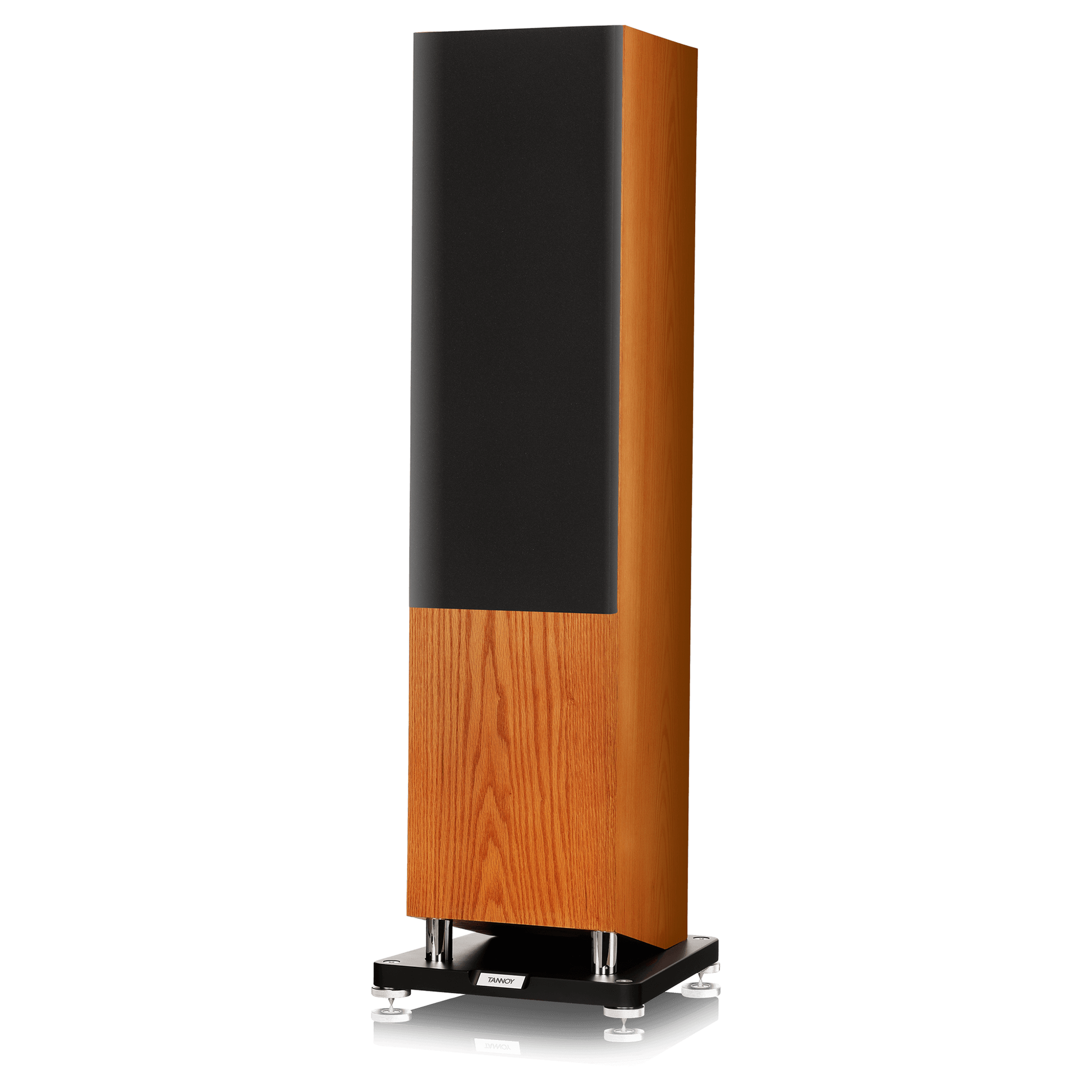

Tannoy Revolution XT 8F (each)

Must be purchased in pairs.

The XT line remains one of our favorites from Tannoy. They have a lithe sound with a lot of presence that greatly belies the price point. These speakers sold themselves at every demo, and we demoed them a lot.

The XT 8F has a Omnimagnet Dual driver setup that further refines bass performance with its linear LF response and exceptional timbre accuracy. The HF section with Torus-Ogive waveguide delivers smooth extension with outstanding imaging.

The REVOLUTION XT 8F crossover uses low loss laminated core inductors and audiophile components throughout and further benefits from high purity oxygen free copper (OFC), silver plated wiring. The 49.4 litre REVOLUTION XT 8F cabinet houses Tannoy's dual-cavity coupled reflex system, featuring separate cavities coupled internally by tuned ports. Bass energy exits from a tuned down-firing port between the angled base of the cabinet and the integrated plinth.

Features

• 2½-way floorstanding loudspeaker for medium to large sized rooms
• Dual Concentric driver technology provides class-leading coherence and point-source imaging
• 8" Dual Concentric and 8" mid/bass driver deliver unrivalled musical articulation and outstanding dynamics
• Highly efficient 91 dB/Watt sensitivity and 400 Watt peak power handling deliver breath-taking dynamics and realism
• Luxury real dark walnut veneer for a high-end cabinet finish
• Magnetic grille mounts provide a smooth and uncluttered front baffle appearance
• New Dual Omnimagnet motor delivers smoother bass performance with exceptional transient attack
• HF and LF drivers share single Omnimagnet optimizing phase coherence for natural and expansive sound
• Innovative shallow Torus Ogive waveguide allows rapid wavefront expansion improving high frequency directivity
• Non-parallel trapezoidal cabinet disperses internal standing waves and reflections for low colouration
• Internal bracing provides extra cabinet rigidity for exceptionally tight and controlled bass
• Twin cavity-coupled reflex system delivers tuneful and musically coherent bass
• Down-firing angled port reduces room boundary effects and facilitates easy loudspeaker placement
• Top-adjustable floor spikes allow precise levelling of speaker cabinet
• Integral plinth provides exceptional stability
• Tannoy - around 100 years of British sound heritage and innovation

Specifications

Sensitivity: 91 dB

Nominal Impedance: 8 ohms

Frequency Response (-6 dB): 34 Hz–32 kHz

Drivers
HF: 25 mm (1") linear PEI dome with Torus Ogive WaveGuide and Omnimagnet technology
LF: 200 mm (8") multi-fibre paper, 44 mm (1.75") voice coil
Bass Driver: 200 mm (8") multi-fibre paper pulp cone with rubber surround, 44 mm (1.75") edge wound voice coil

Crossover Frequency: 250 Hz and 1.8 kHz

Crossover Type: Passive low loss 2nd order low pass, 1st order high pass

Enclosure Type: Downwards ported twin cavity coupled reflex

Volume: 48.8 L (1.72 cu. ft.)

Dimensions (HWD) (Incl. Plinth): 42.5" x 12.5" x 13.6" (1,080 x 317 x 345 mm)

Weight: 43.9 lb. (19.9 kg)
