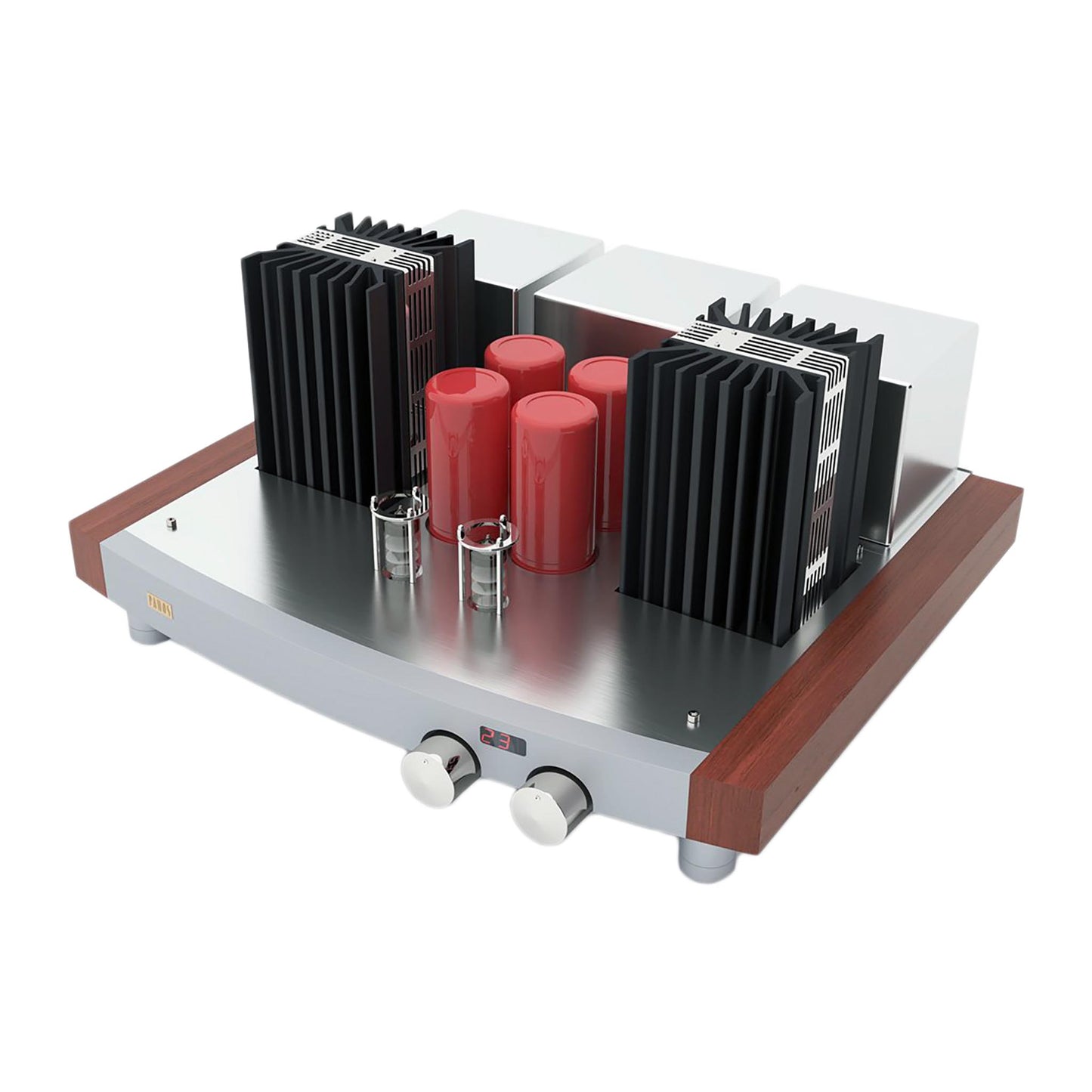

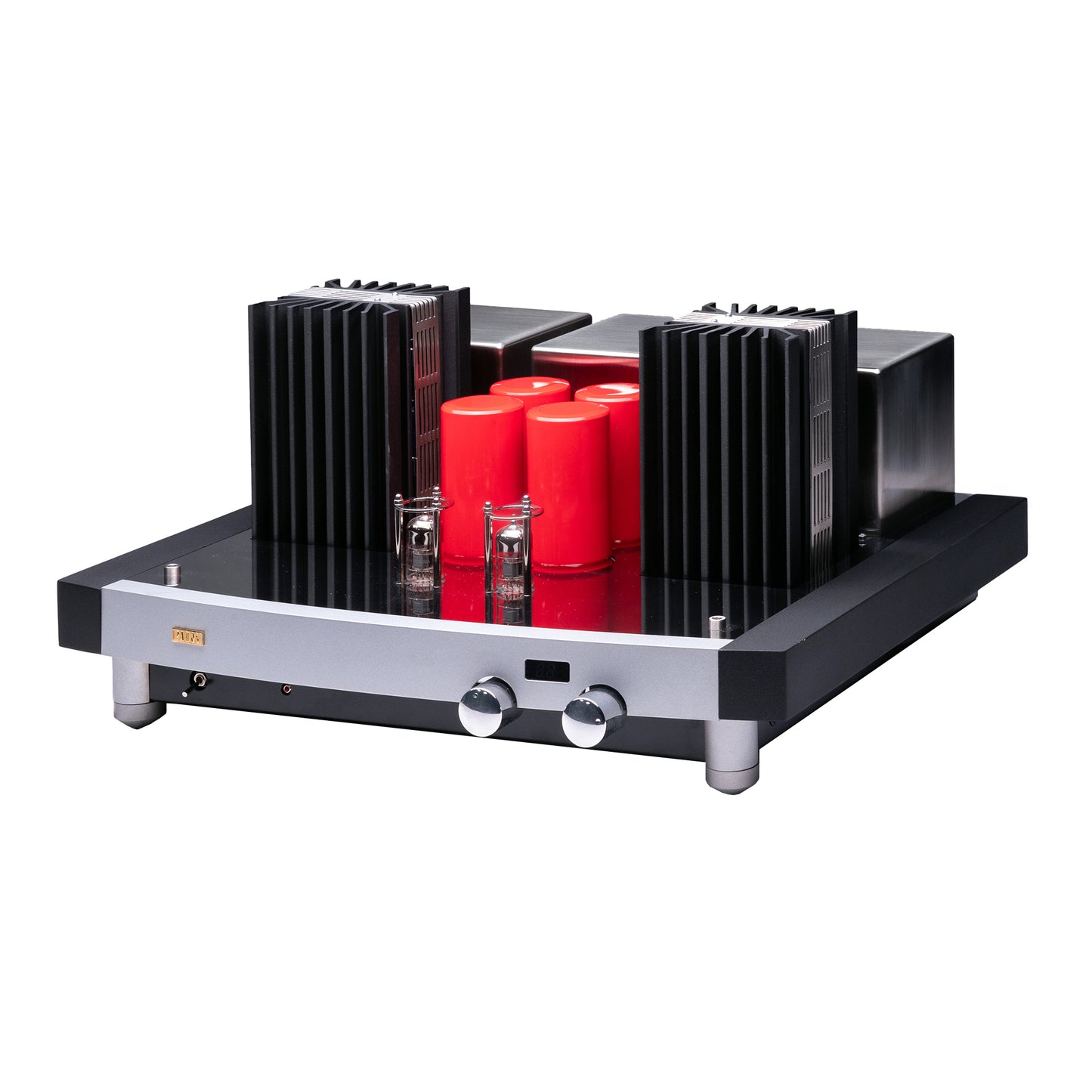

Pathos TT Anniversary Tube Hybrid Integrated Amplifier

  • Sale
  • Regular price $6,995.00


Pathos TT Anniversary Tube Hybrid Integrated Amplifier

Highly selected components, pure silver Pathos signal wiring, and craftsmanship of the highest level. Through the years, TT has been constantly perfected and updated in order to keep this living legend alive.

Today TT is available in its original volume configuration, a purely resistive 24-step manual volume control, and also in a remote-controlled version. The latter is an optical device which drives a battery of read relays (vacuum packed, thorium contacts), which drive a network of precision resistors (1% metal layer) in 1 dB steps.

InPol (Inseguitore Pompa Lineare - Linear Pump Follower) is a Pathos patented system that allows for much greater output in pure Class A. This fully balanced circuit design uses a single solid-state component in follower configuration, with a high-current gain and voltage gain together.

The tube amplifier amplifies the input signal voltage, and InPol supplies the current to drive the loudspeakers without any further amplification. The technology allows an increase in the theoretical output in pure Class A of between 25% and 50%. Together with a low output impedance and a double InPol circuit, the amplifier offers a high damping factor for immense control over the loudspeaker drivers.

Specifications

Type: Integrated amplifier operating in pure class A  with INPOL®circuitry
Power output: 2 X 35 W @ 8 Ω
Frequency response: 13 Hz ÷ 78 kHz ± 0.5 dB
THD: < 0,.% up to the maximum power
Signal/noise ratio: 90 db
Slew rate: 38 volt/μs
Input impedance: 100 KΩ
Power consumption: 240 W
