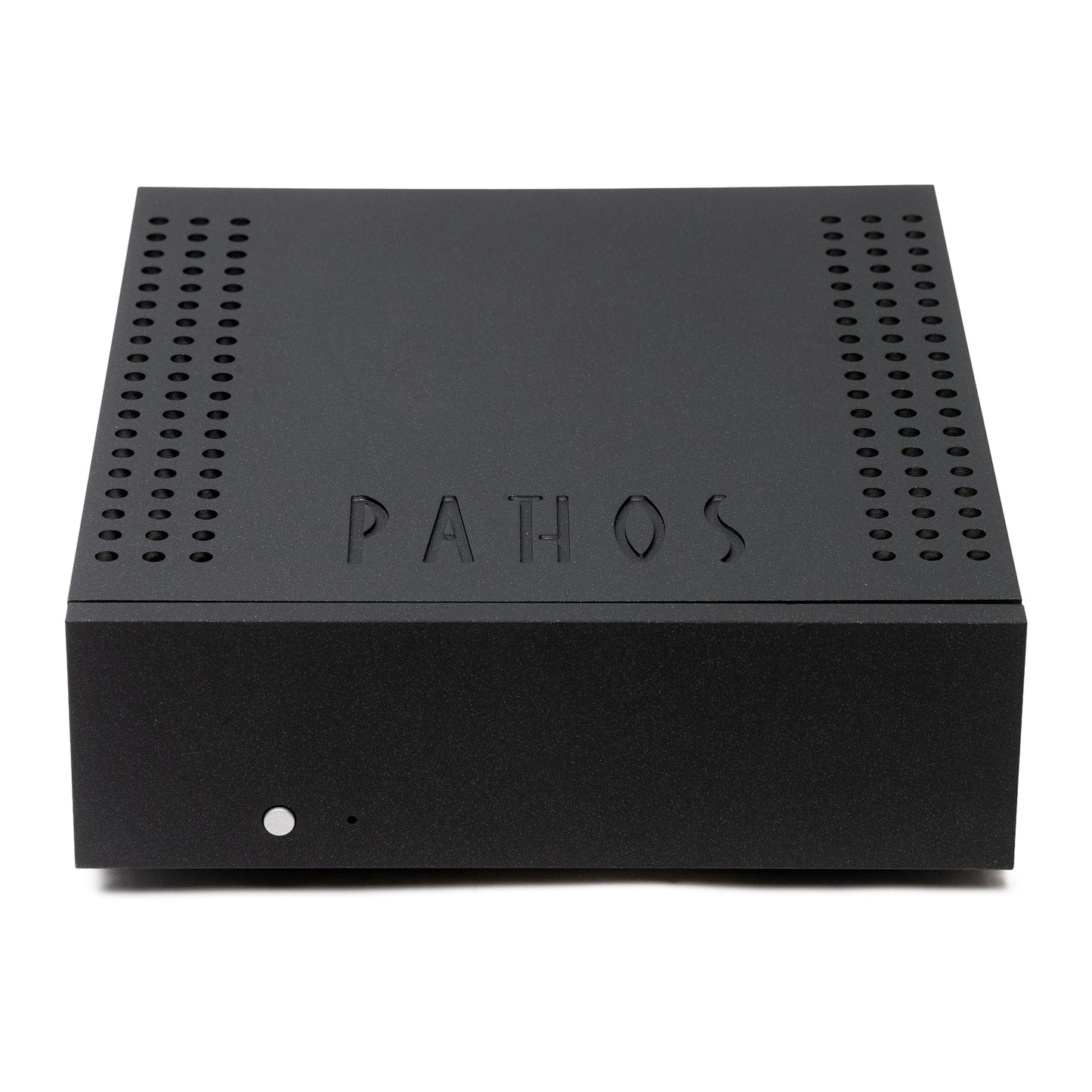

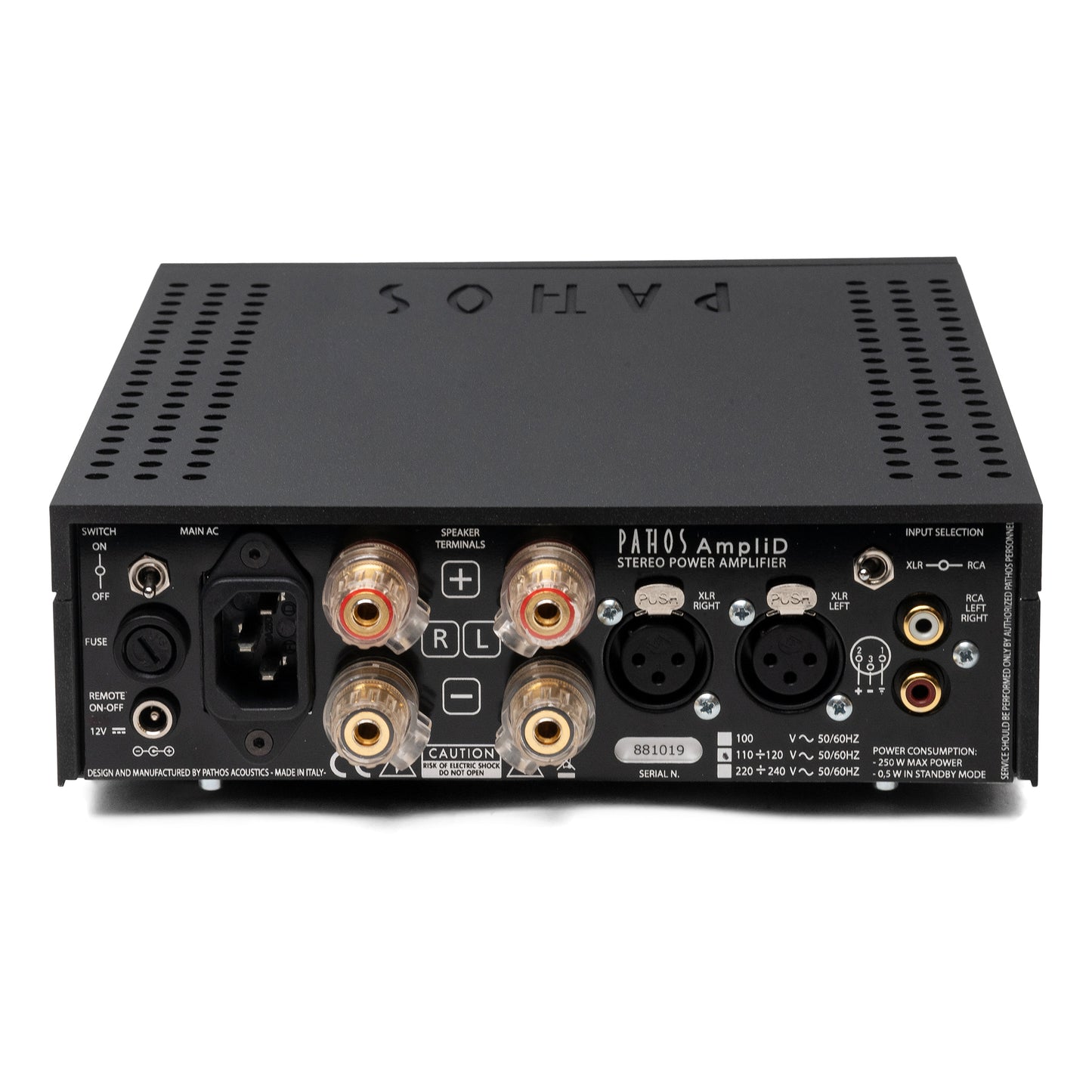

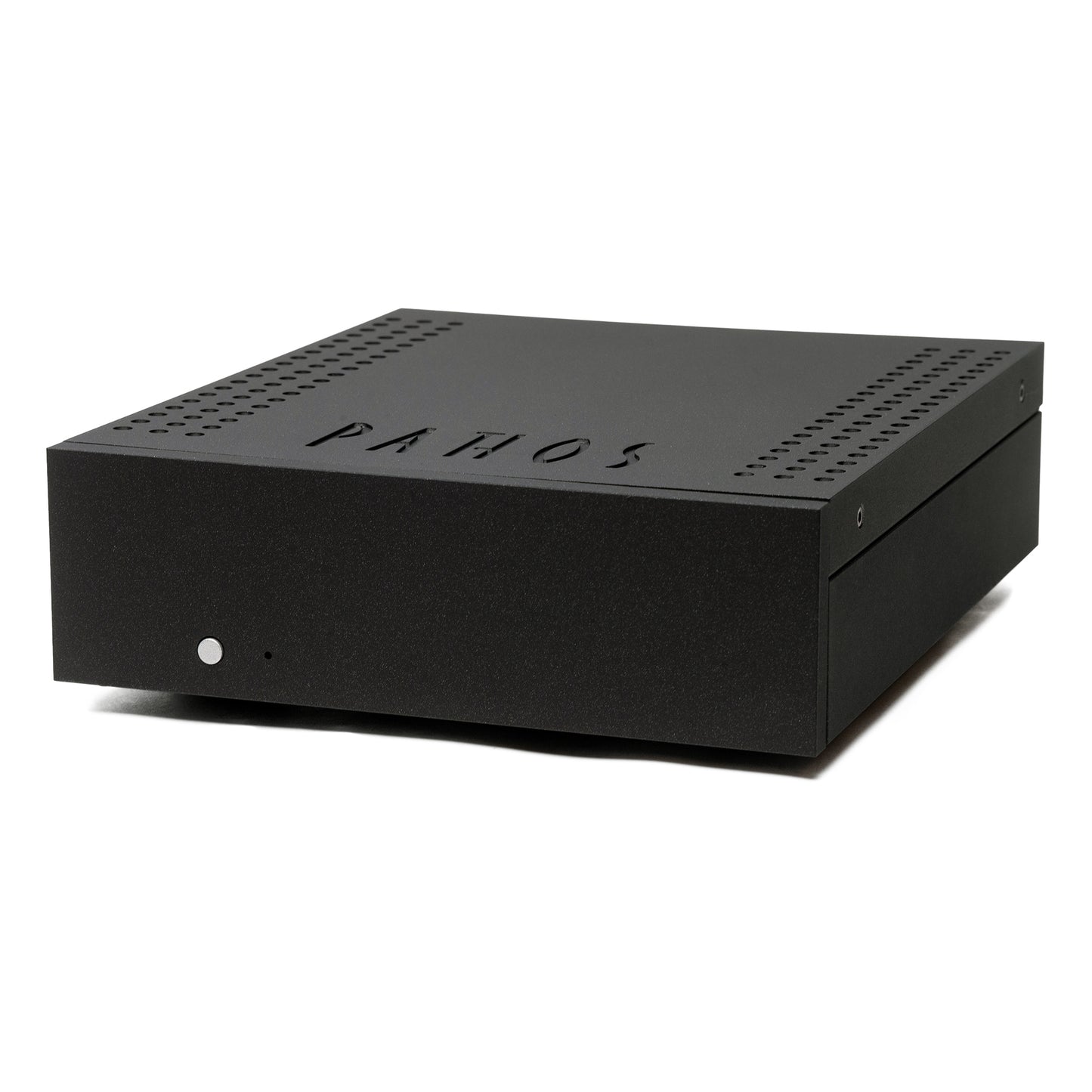

Pathos AmpliD Stereo Power Amplifier
Pathos AmpliD Stereo Power Amplifier
Product questions?
Let us know: 909.931.9686 or chat.
This item qualifies to earn HiFives. What's a HiFive?
View full detailsPathos AmpliD Stereo Power Amplifier
AmpliD is the first of a new line of switching amplifiers from Pathos. Completely balanced in Class-D, it features 70 watts of output power on each channel at 8 ohm, and 130 W at 4 ohm.Â
Specifications
Type: Stereo power amplifier in pure class D, fully balanced
Output power: 70 W @ 8 ohm, 130 W @ 4 ohm
Frequency response: 1 Hz – 100 KHz
THD: < 0.04%
Damping factor: 50
S/N ratio: 98 dB
Input impedance: 47 kOhm
Analog line inputs: 1 x balanced XLR, 1 x RCA
Input sensitivity: 0.8 V RMS unbalanced, 0.8+0.8 V RMS balanced
Output impedance: 0.16 ohm
Gain: 29 dB unbalanced, 23 dB balanced
Power consumption: 8 W min, 300 W max, <0.5 W standbyÂ
Size:Â 9" (D) x 7.8" (W) x 2.7" (H)
Weight (net/packed):Â 11 lb (5 kg) / 13.2 lb (6 kg)
