Parasound

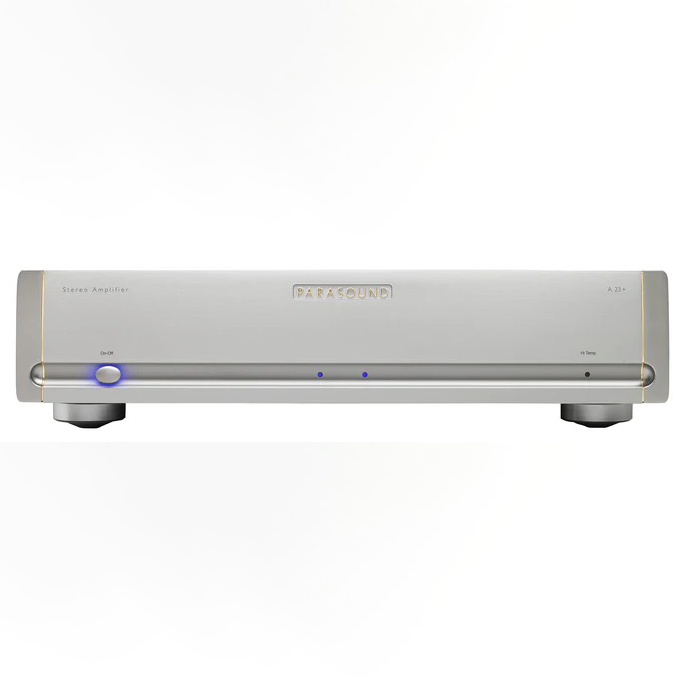

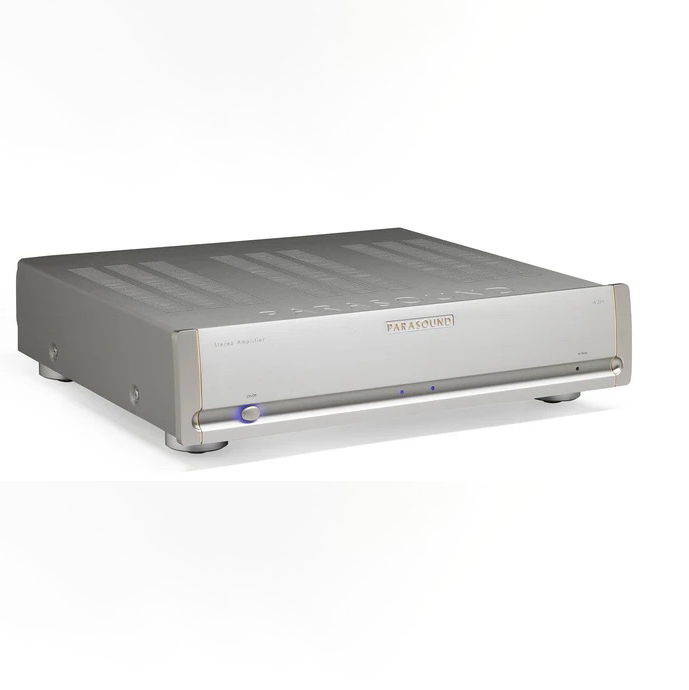

Parasound Halo A 23+ Stereo Power Amplifier

Parasound Halo A 23+ Stereo Power Amplifier

SALE Sold out
Regular price $1,999 In stock now!
Regular price $1,999 Sale price $1,999 In stock now!
Shipping calculated at checkout.

Product questions? Found a lower price?

Let us know: 909.931.9686 or chat.

Trade-in Form

Tell us about yourself

Tell us about your trade-in item

Please note: We are unable to accept cables, tables, and carts.

This item qualifies to earn HiFives. What's a HiFive?

View full details

Parasound Halo A 23+ Stereo Power Amplifier

A 160 W, high-bias class A and AB amp designed by John Curl. Can be bridged for 500 W mono.

With circuitry designed by the legendary John Curl, the Parasound Halo A 23+ is a hugely powerful high-bias class-A with AB operation that delivers 45 A peak current per channel. It will drive even speakers whose loads dip below 2 ohm. It has balanced inputs with discrete circuits, and the direct coupled signal path means no capacitors or inductors get in the way of great sound.

The JFET input stage is connected to a MOSFET driver stage, and the amp uses 12 beta-matched 15 ampere, 60 MHz bipolar output transistors. The 27 lb. amp uses a 1.1 kVA shielded toroidal transformer with independent windings for each channel. There are independent power supplies for the input, driver, and output stages. The output stage uses 54,400 µF filter capacitors. Harris hyper-fast soft-recovery bridge diode rectifiers continue the theme of expensive, overspecified design that results in a sound with huge power and headroom. Full power is rated all the way down to 5 Hz for unrestricted low-end bass.

Features

  • DC Servo and relay protection circuits
  • AC turn-on inrush surge protection with relay bypass
  • Automatic turn-on by 12 V trigger or audio sensing
  • 2 rack space chassis with rear carry handles
  • Rack mount hardware included

Specifications

Power Output (8, 4, 1 ohm): 160 W, 240 W, 500 W

Inputs: Stereo RCA, stereo XLR, DC trigger

Input Impedance (Bal., SE): 66 kΩ, 33 kΩ

Gain: 29 dB

Dimensions (WHD): 17-1/4" x 4-1/8" x 15-1/4"

Weight: 27 lb.
