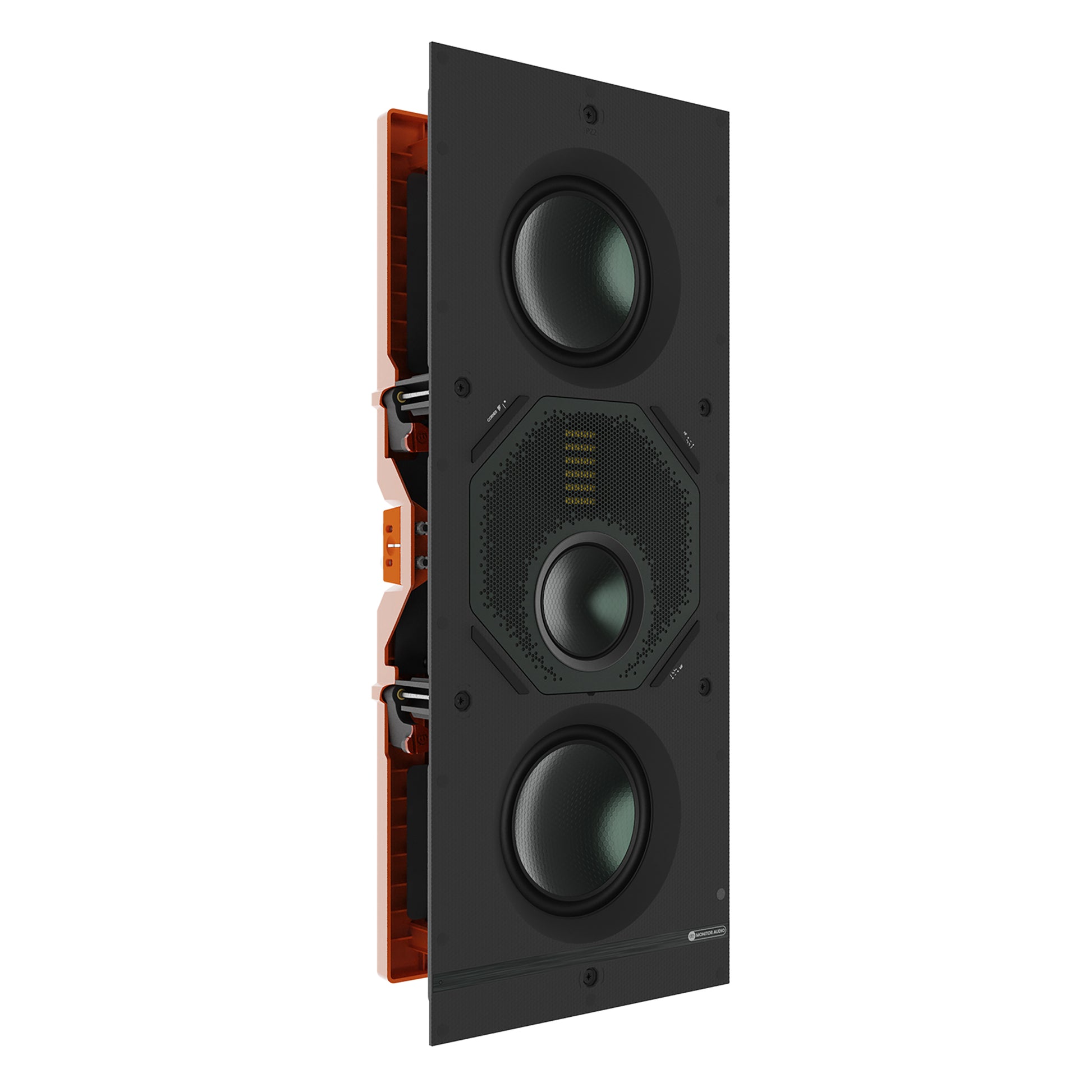

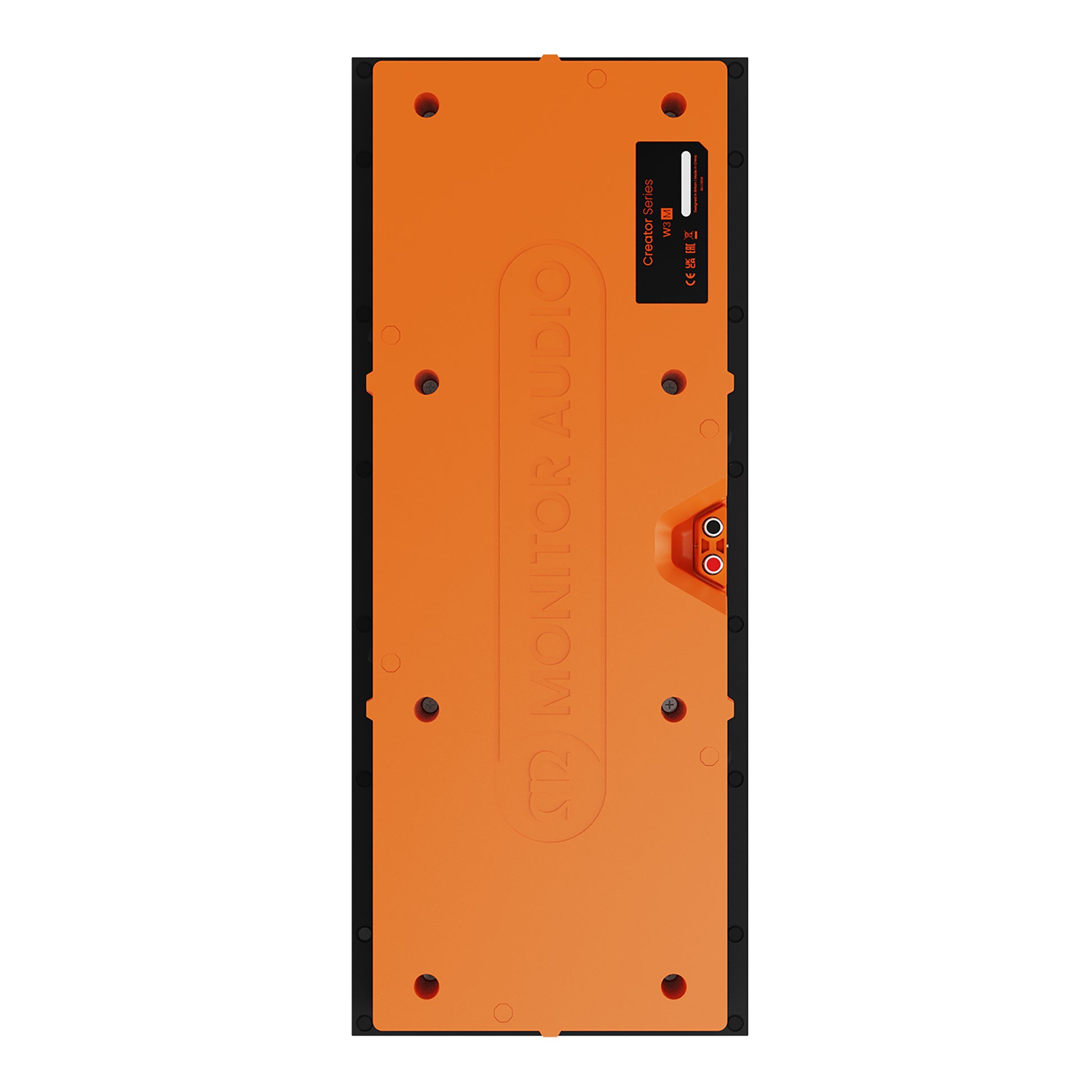

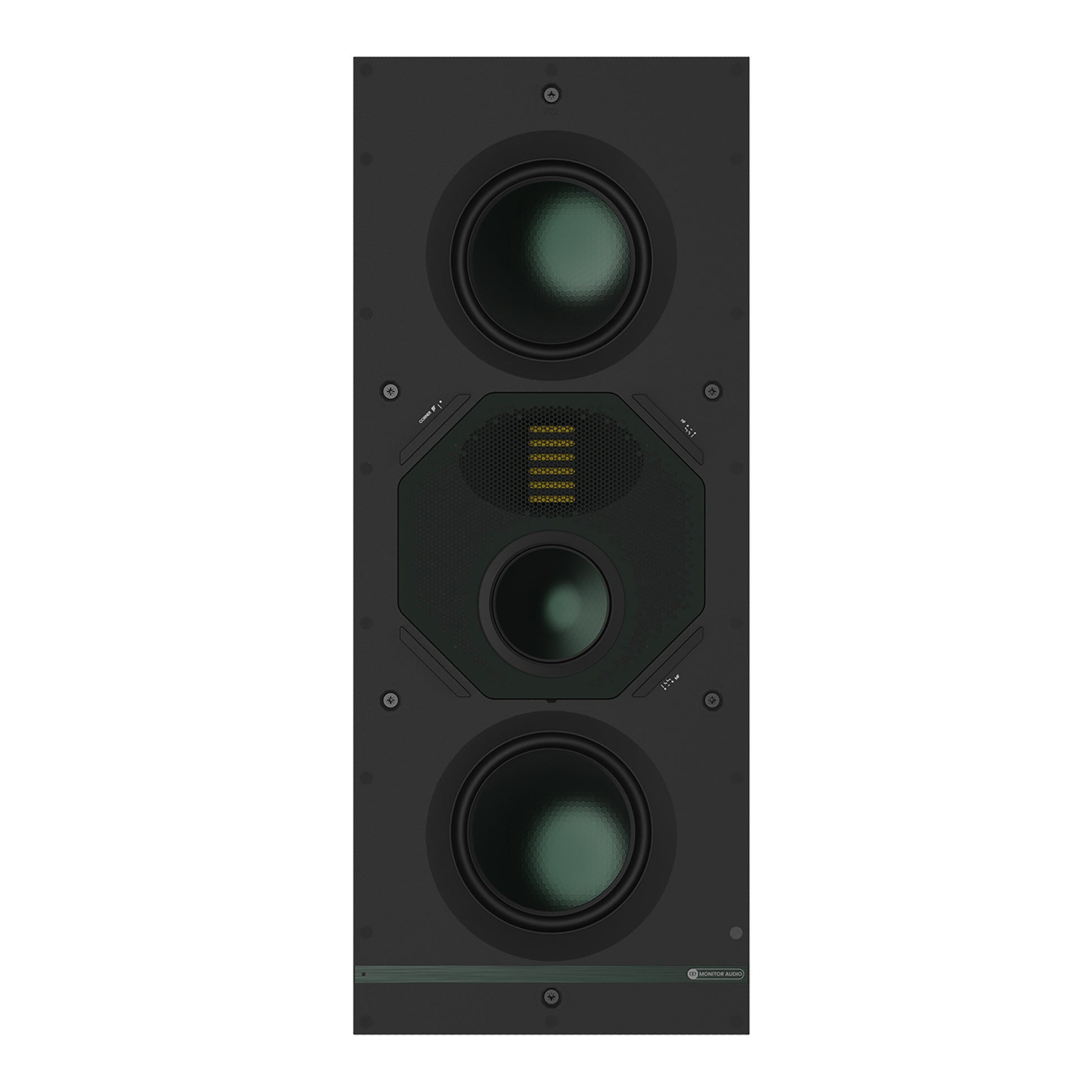

Monitor Audio W3M In-Wall Loudspeaker

An 88 dB three-way with a 527 x 198 mm cutout and the highest level audio performance

This high-performance, large Tier 3 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model based on the Platinum Series 3G, and features the very latest acoustic technologies from Monitor Audio. This includes an MPD II high-frequency transducer, developed for the THX Certified Ultra Cinergy range. The precision specification of the Micro Pleated Diaphragm technology is designed to produce accurate, lifelike sound without any distortion. This is coupled with a C-CAM midrange driver and two RDT III bass drivers.

This combination ensures levels of acoustic transparency and detail found in Monitor Audio’s premium loudspeaker ranges, where much of his acoustic technology was developed. This really is the last word in installed performance.

It has a cut-out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionizes the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable, and strong fitment.

Features

• Ideal for installations where pristine acoustic performance is required
• Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
• Tri-Grip II for easy and secure fitment

Specifications

Type: 3-way

Frequency Response: 45 - 60,000 Hz

Nominal Impedance: 6 ohm

Sensitivity: 88 dB

Crossover Frequency: 650 Hz, 3,500 Hz

Driver Complement: 2 x 5" RDT III bass, 1 x 3" C-CAM midrange, 1 x 1" MPD II tweeter

Cutout: 20-3/4" x 7-13/16" (527 x 198 mm)

Dimensions (HWD): 22-1/16" x 9-1/8" x 3-9/16"

Weight: 10 lb 6 oz
