View full detailsMarantz Model 10 Reference Integrated Amplifier
A 250 Wpc dual-mono class-D amp with MM/MC phonostage
The Model 10 uses famed Purifi class-D technology for its output stage, and is fully dual mono all the way back to the high-tech switch-mode power supplies. There is an MM or MC phonostage on board and there are both balanced and single-ended inputs and outputs. The headphone amplifier has selectable gain and there are tone controls for bass and treble.

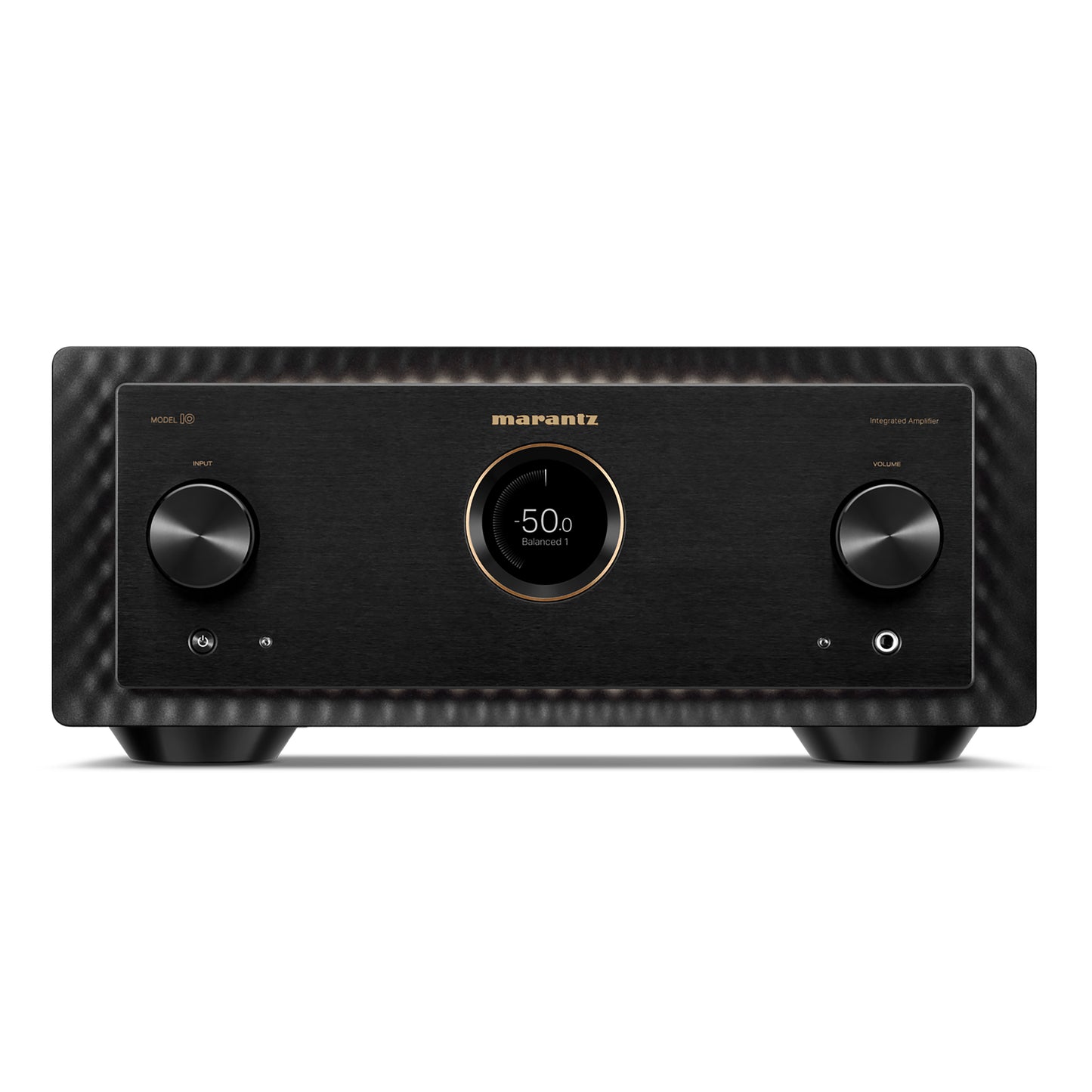

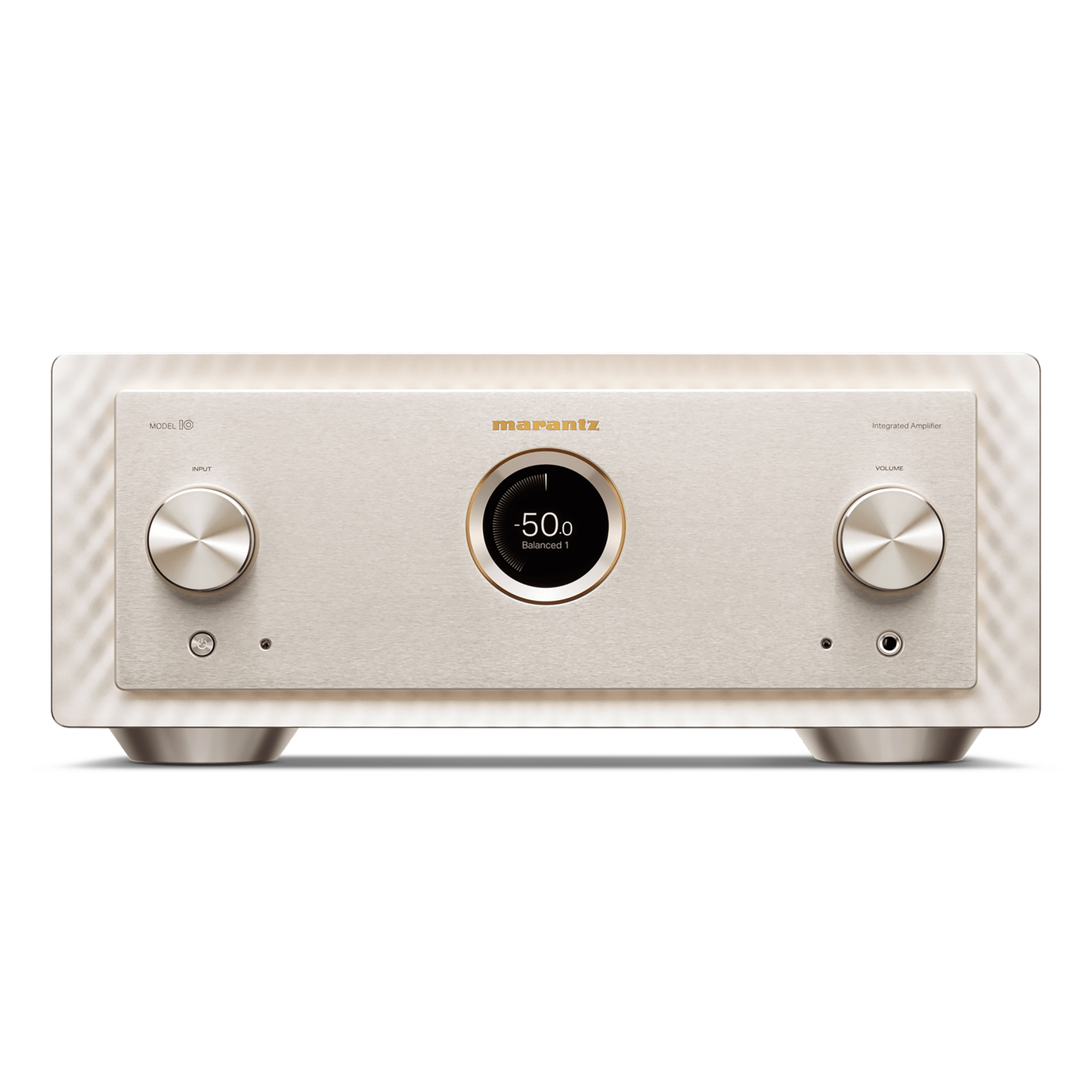

The Model 10 uses a copper-plated, triple-layered separation chassis to isolate the high- and low-power circuits from each other. The brushed aluminum fave features a full-color OLED display, and the mesh top cover allows a view of the internal illumination and branding.
Specifications
Output Power (8 ohm, 4 ohm): 250 W, 500 W
Damping Factor: 500

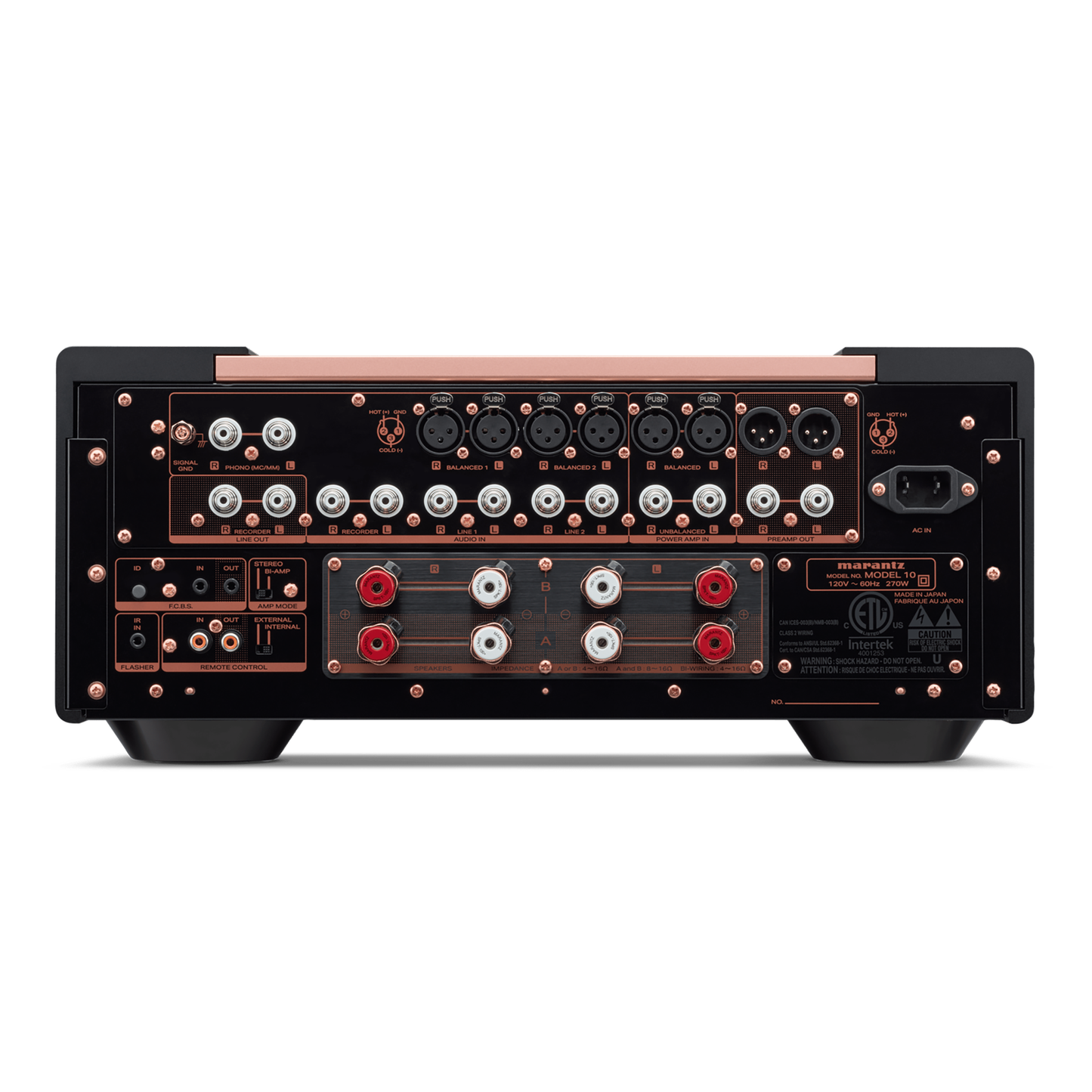

Inputs: 2 x stereo XLR line, 3 x stereo RCA line, 1 x stereo RCA phono
Outputs: 1 x stereo RCA Rec, 1 x stereo RCA pre, 1 x stereo XLR pre, 2 x stereo speaker, 1 x headphone
Dimensions (WHD): 17.3" x 7.56" x 18.6" (440 × 192 × 473 mm)
Weight: 74.3 lb. (33.7 kg)
