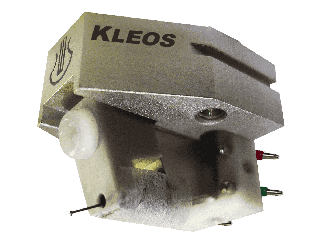

Lyra Kleos SL Moving Coil Cartridge
Lyra Kleos SL Moving Coil Cartridge
This product is an exception to our normal return policy.
Product questions? Found a lower price?
Let us know: 909.931.9686 or chat.
This item qualifies to earn HiFives. What's a HiFive?
View full detailsLyra Kleos SL Moving Coil Cartridge
An ultra-low-output special order cartridge for expert users.
The Lyra Kleos SL is a special, built-to-order version of Kleos for expert users with very high-gain, extra low noise phonostages, or a step-up transformer designed for phono cartridges of 2 - 3 ohms or less.
The Kleos SL may provide extra pure and pristine sound from an audio system that is optimized for a low-impedance, low-output cartridge. However, this may be accompanied with a lesser level of energy and power. Please contact our analog team if you are unsure about running such a low-output (0.25 V) MC phono cartridge.
The Kleos SL was designed by Jonathan Carr, with Akiko Ishiyama doing the preliminary build, and Yoshinori Mishima doing the final build and testing.
The cartridge body is one-piece, machined from solid 7075 alloy billet, with reduced-surface higher-pressure headshell contact area, partially non-parallel shaping, phase-interference resonance-controlling mechanism, and body threaded directly for mounting screws.
The recommended load directly into MC phono input is determined by listening.
Use a step-up transformer designed for 2 - 3 ohms cartridge impedance. The transformer output must be connected to standard 47kohm MM-level RIAA input, preferably via short, low-capacitance cable
Recommended tonearms: High-quality pivoted or linear tangential tonearms with rigid bearing(s), adjustable anti-skating force, preferably VTA
Specifications
Type: Medium weight, medium compliance, low-impedance, low-output moving coil cartridge
Stylus: Lyra-designed long-footprint variable-radius line-contact nude diamond (3um x 70um profile, block dimensions 0.08 x 0.12 x 0.5mm), slot-mounted
Cantilever System: Solid boron rod with short one-point wire suspension, directly mounted into cartridge body
Coils: Single layer, 6N high-purity copper, square-shaped chemically-purified high-purity iron former, 2.7ohms self-impedance
Output Voltage (@5 cm/sec): 0.25 mV, zero to peak, 45 degrees (CBS test record, other test records may alter results)
Frequency Range: 10 Hz - 50 kHz
Channel Separation (@ 1 kHz): 35 dB or better
Compliance (@100 Hz): Approx. 12x10-6 cm/dyne
Vertical Tracking Angle: 20 degrees
Cartridge Mounting Screws: 2.6 mm 0.45 pitch JIS standard
Distance (From mounting holes to stylus tip): 9.5 mm
Recommended Tracking Force: 1.65 ~ 1.78 g (1.72 g recommended)
Cartridge Weight: 8.8 g
