Kuzma Stogi Reference CE Gimbaled Tonearm

Kuzma Stogi Reference CE Gimbaled Tonearm

SALE Sold out
Regular price $5,047 In stock now!
Regular price $5,047 Sale price $5,047 In stock now!
Shipping calculated at checkout.

Product questions? Found a lower price?

Let us know: 909.931.9686 or chat.

Trade-in Form

Tell us about yourself

Tell us about your trade-in item

Please note: We are unable to accept cables, tables, and carts.

This item qualifies to earn HiFives. What's a HiFive?

View full details

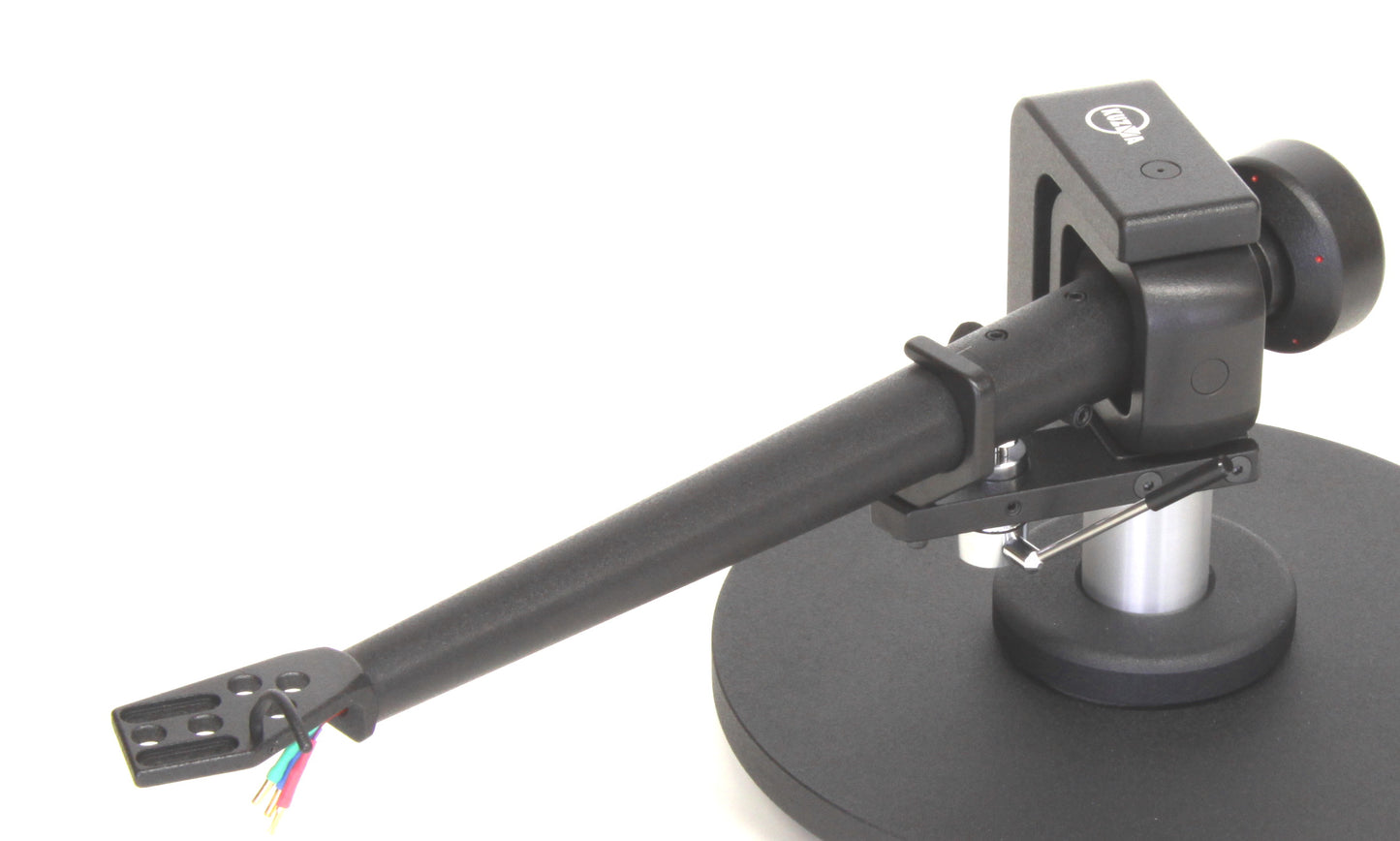

Kuzma Stogi Reference CE Gimbaled Tonearm

A 9" medium mass tonearm with upgraded bearings and a damped conical tube

While similar in construction to the Stogi, this tonearm incorporates a conical tube and the vertical bearings have highly damped brass housing. A conical tube is machined from a solid aluminum rod which has a built-in precise azimuth adjustment worm drive mechanism.

Tonearm geometry, bearing, wires and other parts are the same as Stogi and effective mass differs only slightly.

Rigid medium mass

This is a very rigid medium mass tonearm with precision ball bearings which, while withstanding very heavy loads, displays extremely low starting and running friction and noise levels. The main frame and all other parts are machined from solid aluminum and brass blocks. Some parts are anodized and some are not, in order to help control tonearm resonance. The headshell provides a stable cartridge mounting, while the internally damped tube connects this to the massive bearing parts where any vibration or noise is dispersed. Most parts are glued together for rigidity and damping.

The conical tube machined from a solid aluminum rod is internally damped and divided into two parts which, while further aiding damping, also allows for precise azimuth adjustment. A special mechanism (worm drive), using an Allen wrench, allows the tube to be rotated back and forth in minimal increments with no air gap. This mechanism is submerged in silicone grease for further damping. A marker line clearly shows the azimuth position and facilitates use, while allowing for repeated adjustments.

A decoupled brass counterweight controls balance and adjusts tracking force, while damping vibration in the tube. The massive arm base serves to clamp the tonearm rigidly to the armboard. All bearings are pre-loaded and glued into position which, while damping vibrations in them, also provides long-lasting, zero play, low friction, and low noise level in the bearings. VTA adjustment is made by raising or lowering the tonearm in the arm base itself.

Wires are in one length from cartridge pins to RCA connectors. It is also possible to use the tonearm in a balanced ( XLR) or 5pin configuration. With Cardas Copper wiring and ETI Copper Bullet RCAs. Includes mounting collar for non-Kuzma turntables ($180 value).

Specifications

Effective Length: 229 mm

Arm Mount Distance: 212 mm

Distance from Spindle to Horizontal Bearing: 212 mm

Bearing Type: Precise ball bearings

Effective Mass: 13 g

Total Mass: 870 g

Offset Angle: 23 degrees

Max. Standard Cartridge Weight: 15 g
