Audio-Technica AT-OC9XSL Dual Moving Coil Cartridge

Audio-Technica AT-OC9XSL Dual Moving Coil Cartridge

SALE Sold out
Regular price $749 In stock now!
Regular price $749 Sale price $749 In stock now!
Shipping calculated at checkout.

This product is an exception to our normal return policy.

Product questions? Found a lower price?

Let us know: 909.931.9686 or chat.

This item qualifies to earn HiFives. What's a HiFive?

View full details

Audio-Technica AT-OC9XSL Dual Moving Coil Cartridge

The AT-OC9XSL Dual Moving Coil cartridge with special line contact stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion.

Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and premium permendur yoke that dramatically increase the magnetic energy, and the nude special line contact stylus on a boron cantilever that tracks the record groove with ultimate accuracy, delivering rich, full-range audio and high transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

Features

  • Dual moving coil design, featuring independent coils for both left and right channels, provides outstanding channel separation
  • The coils are aligned in a reverse V-shaped formation, which exerts less pressure on the stylus, thereby minimizing distortion
  • The cartridge body is pre-threaded, enabling it to be mounted onto the headshell or integral tonearm with just two screws – no nuts required
  • Features nude Special Line Contact stylus and boron cantilever with accurate tracking ability and high transient response
  • A neodymium magnet and permendur yoke provide dramatically increased magnetic energy
  • Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction
  • Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer

Specifications

Type: Dual moving coil, aluminum body
Frequency response:
 20-50,000 Hz
Channel separation: 28 dB (at 1 kHz)
Vertical tracking angle: 20 degrees
Vertical tracking force: 1.8-2.2 g (standard: 2 g)
Recommended load impedance: Min. 100 ohm (when head amplifier is connected)
Output: 0.4 mV (at 1 kHz, 5 cm/sec)
Channel balance: 0.5 dB (at 1 kHz)
Stylus shape: Special line contact
Cantilever: 0.28 mm nude boron
Static compliance: 22 x 10-6 cm/dyne
Dynamic compliance: 18 x 10-6 cm/dyne (100 Hz)
Mount: Half-inch
Weight: 7.6 g
Dimensions (HWD): 17.3 mm x 16.8 mm x 25.7 mm (0.68" x 0.66" × 1.01")

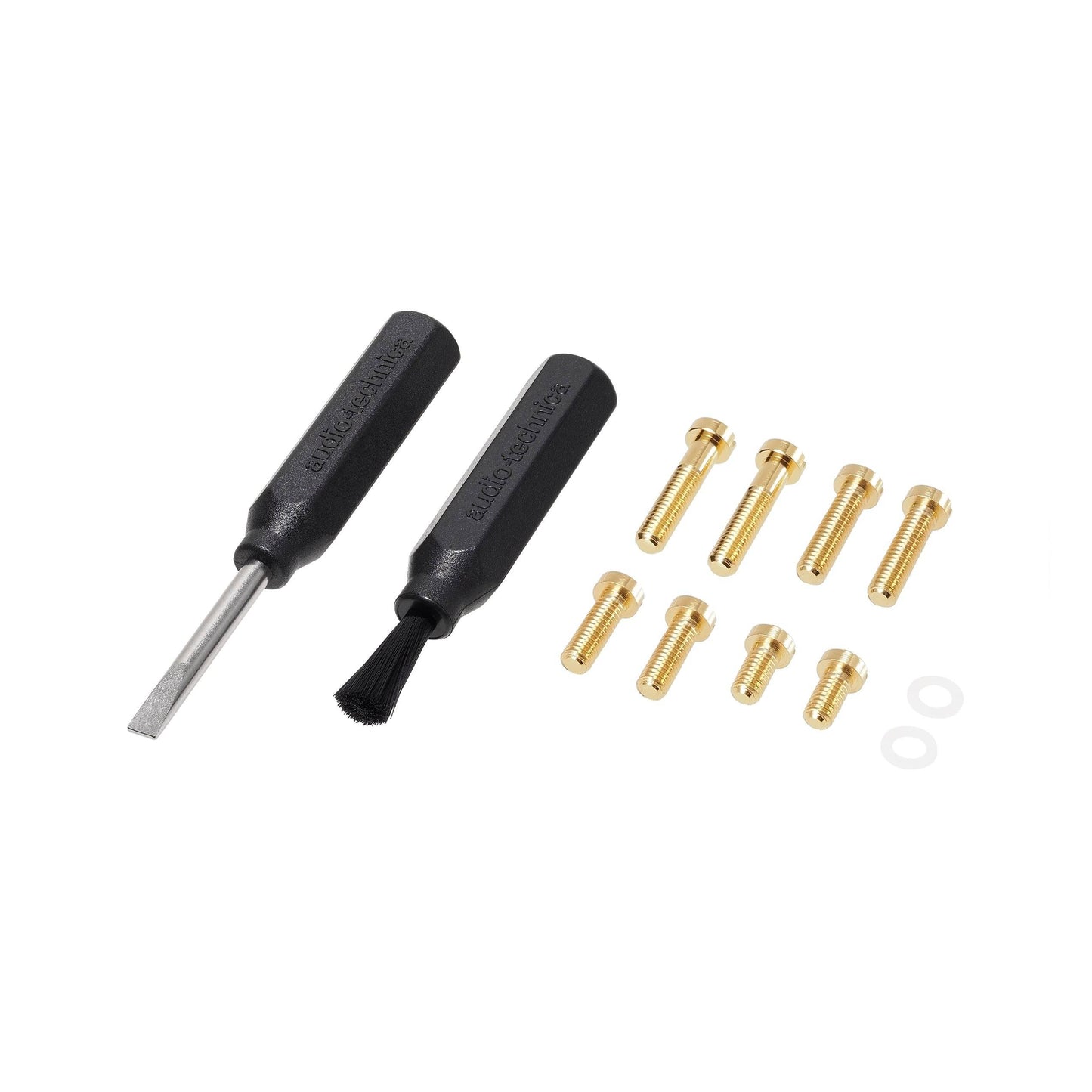

Accessories included: Non-magnetic screwdriver, 2 washers, cartridge installation screws (5, 8, 10, 12 mm × 2 each), plastic protector, brush
