Vincent Audio PHO-500 MM/MC Phonostage

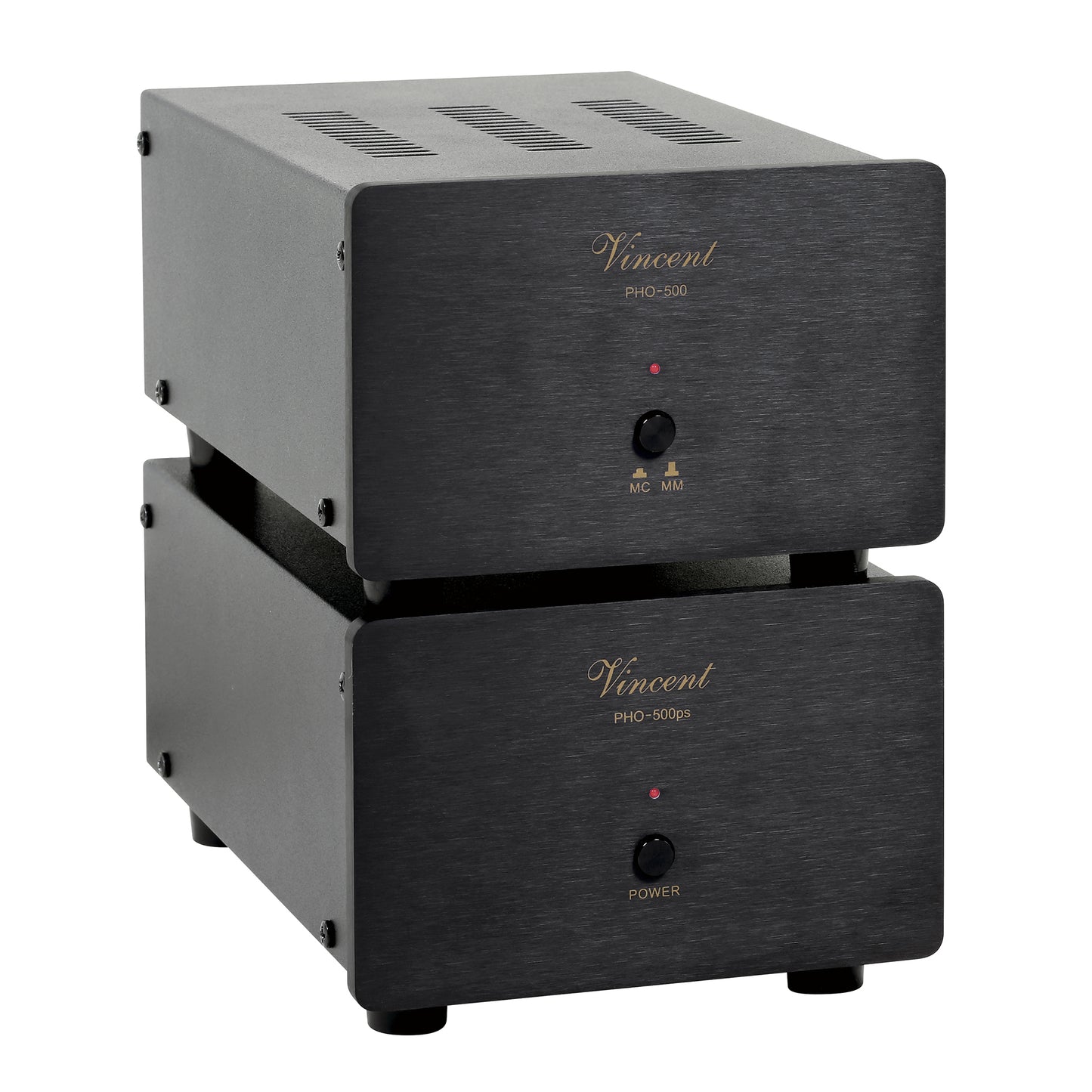

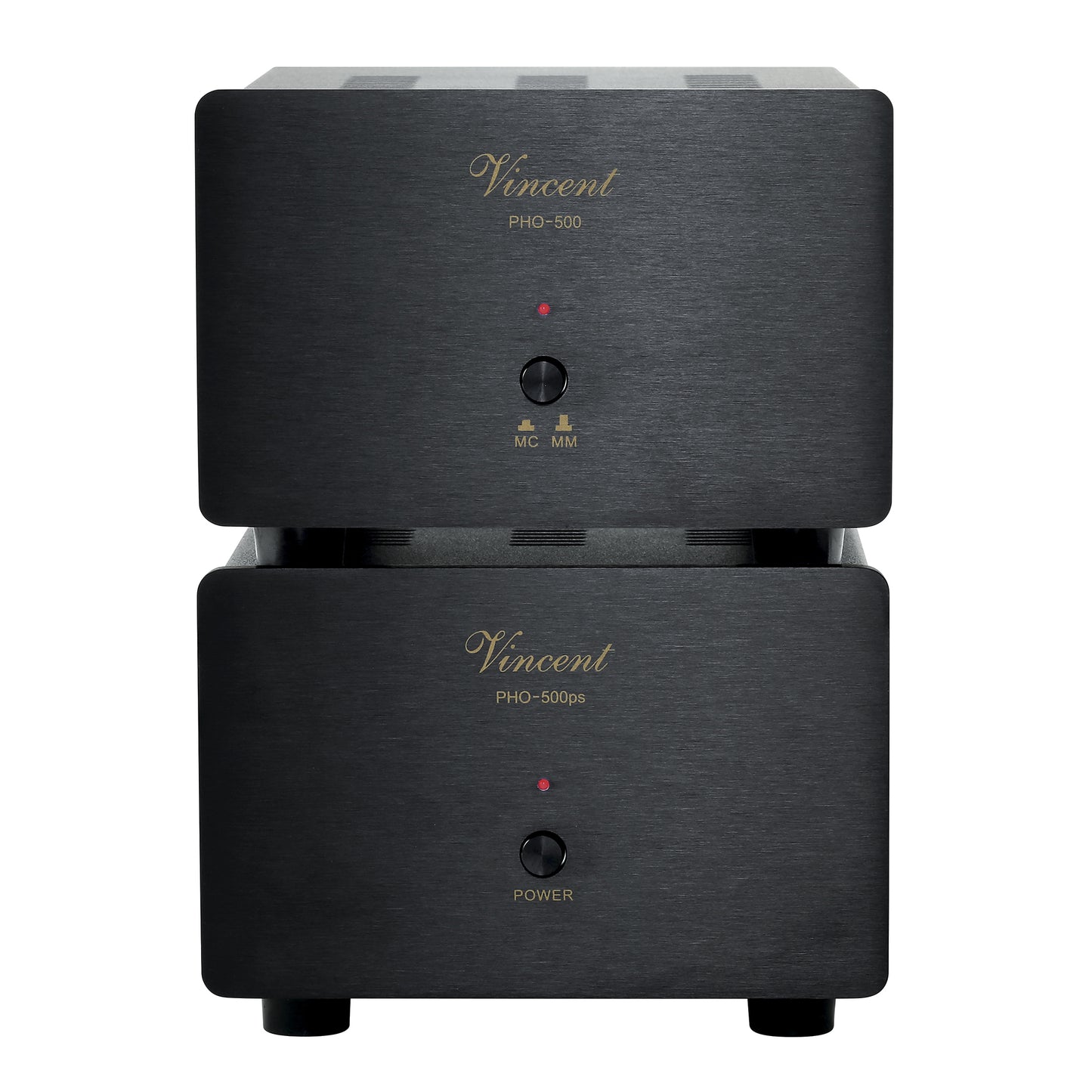

A unsophisticated and low noise playback is the job of a good phono preamplifier. With the PHO-500, Vincent has managed this. First, a complex power supply in an external housing, second, carefully chosen components. Adjustments are made using DIP switches.

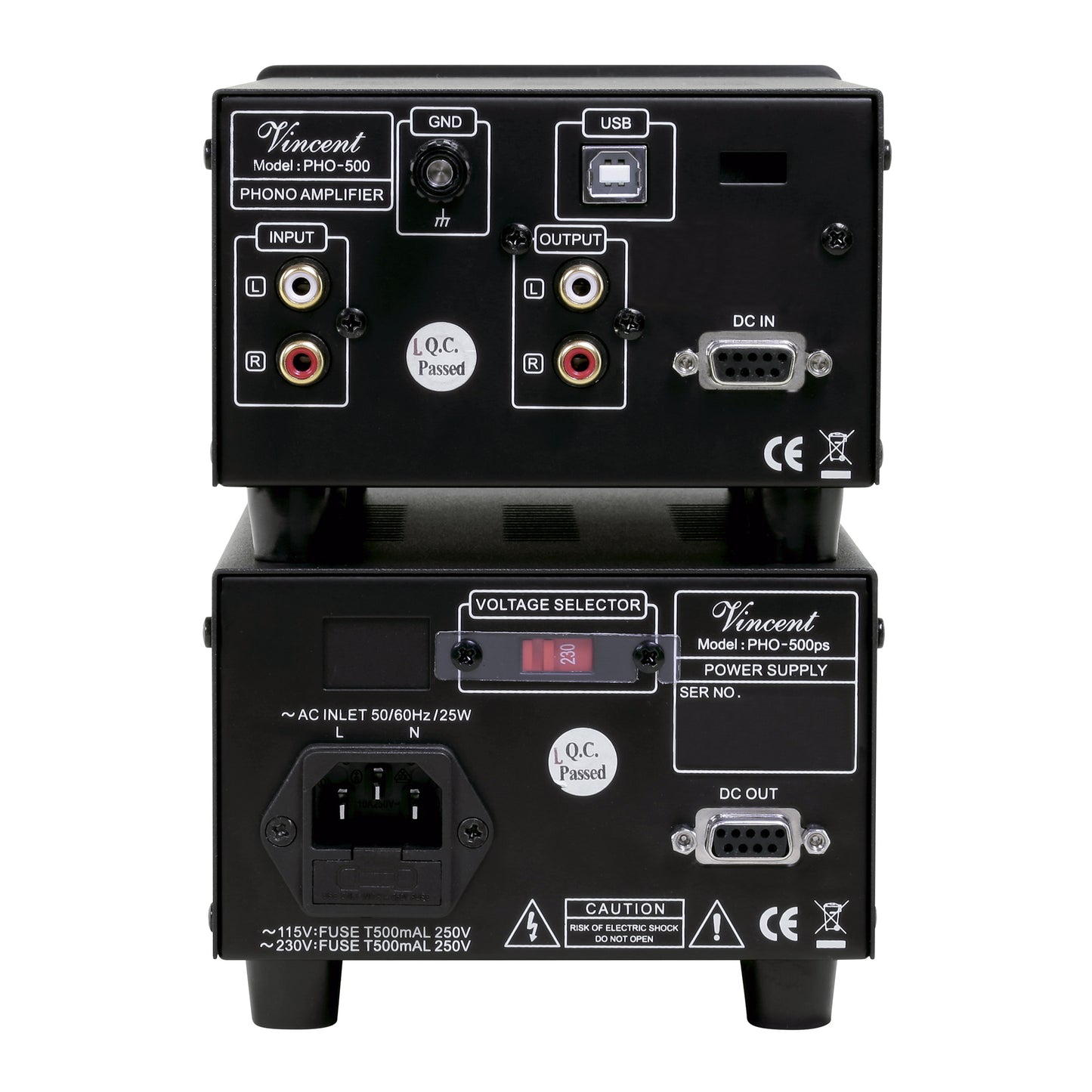

A USB B output allows you to connect the PHO-500 to a computer to digitize your vinyl.
Input Sensitivity (MM, MC): 58 mV, 6.8 mV
Signal-to-Noise (MM, MC): >83 dB, >70 dB
Input Impedance (MM, MC): 47 kOhm, 100 ohm - 1000 ohm
Input Capacity (MM, MC): 15 pF - 350 pF, 15 pF
Output Impedance: 250 ohm
Inputs: 1 x Stereo RCA
Outputs: 1 x Stereo RCA, USB
Max. Power Consumption: 10 W
Weight (PSU, Unit): 3 lb., 2.2 lb.
Dimensions (WHD, each): 5.1" x 3.7" x 8" (130 x 95 x 205 mm)
