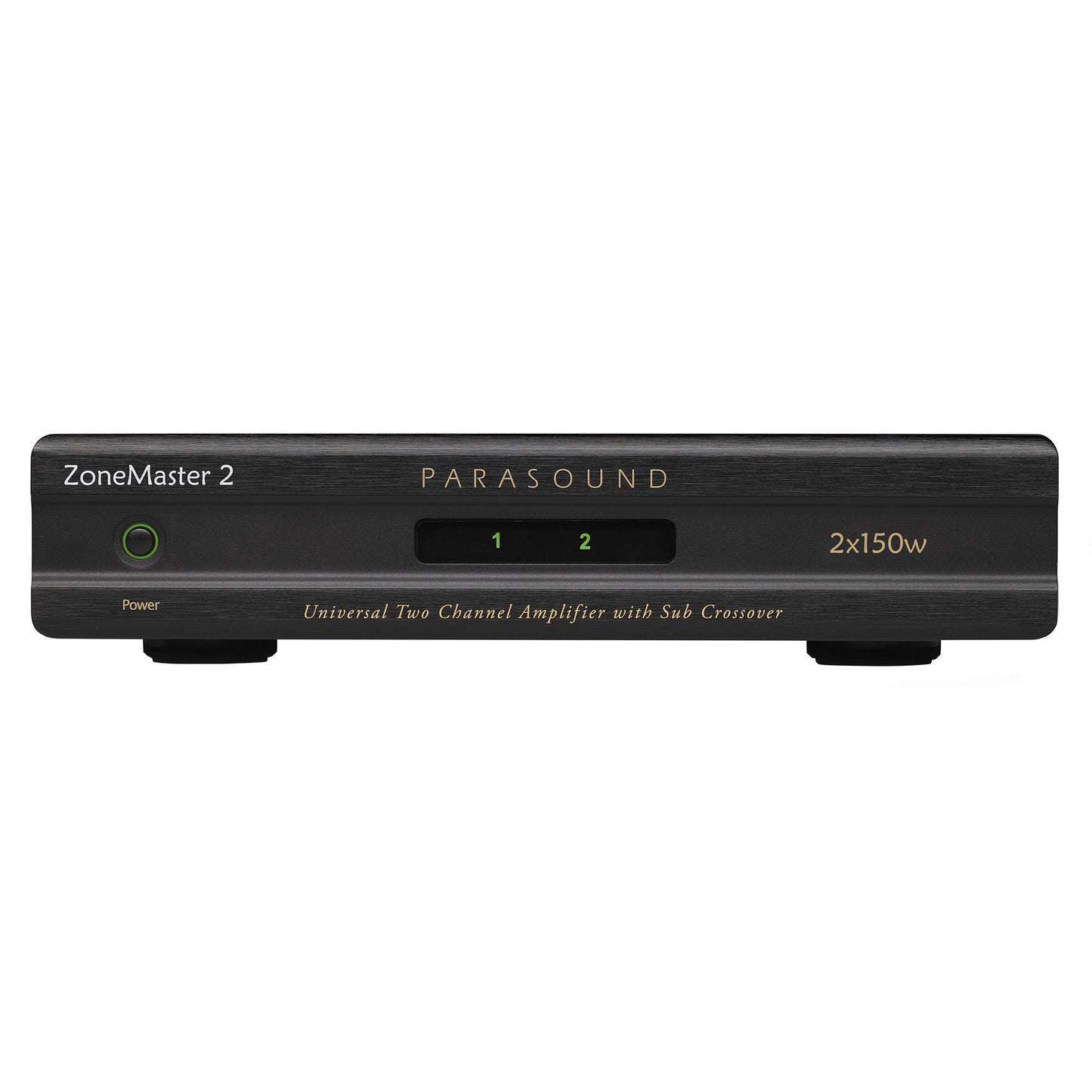

View full detailsParasound ZoneMaster 2 Two Channel / 4 Speaker Amplifier with Subwoofer Crossover
A 150 W universal amplifier with class-AB inputs stage, and class-D output stage.
The ZoneMaster 2 offers 4 speaker connections, and A and B outputs for both channels. It offers a high current for stable operation at 2 ohm.
The class-AB input stage mates perfectly with a premium Class D power stage. There are independent audio sensing triggers, and independent 12 V trigger inputs. There are separate level controls for both channels.
There are looping 12 V trigger outputs, and a master 12 V trigger input to turn all zones on or off. A speaker-level input allows for expansion without pre-out jacks.
A summed mono mode combines L and R for single-speaker applications. The ZoneMaster 2 also offers a 80 Hz low-pass mono RCA sub out, and an 80Hz low-pass filter in bridged mode for driving in-wall/in-ceiling woofers or passive subs.
The detachable speaker connectors accept up to 12 gauge wire, and there is short circuit and overheat protection with front panel indicators. The 0.5 W standby power consumption meets Energy Star & EU specs, and the whole unit is in a compact 1U chassis.
Specifications
Power Output (8 ohm, 4 ohm):120 W, 150 W
Dimensions (WHD): 8.5" x 2" x 10"
Weight: 4.3 lb.
