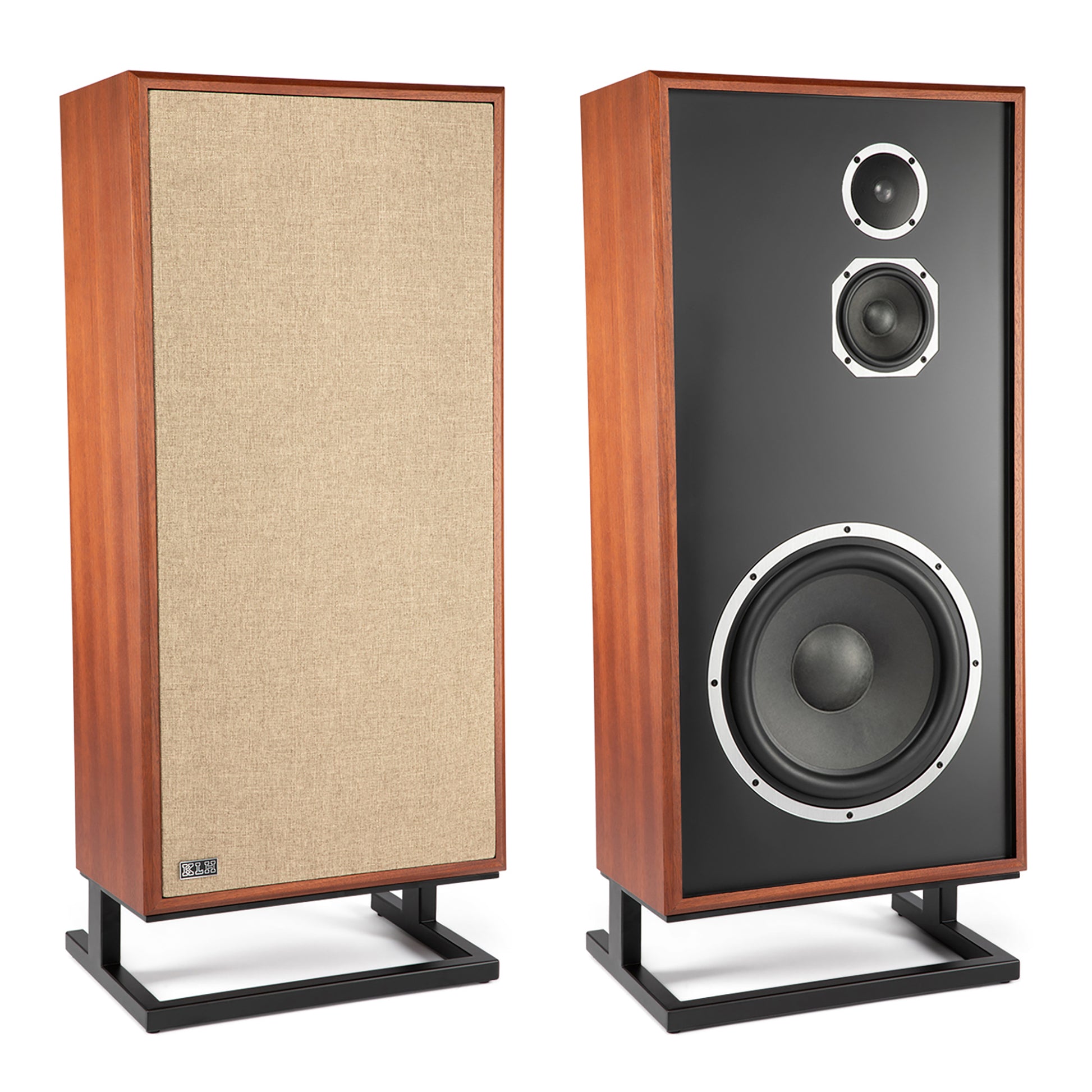

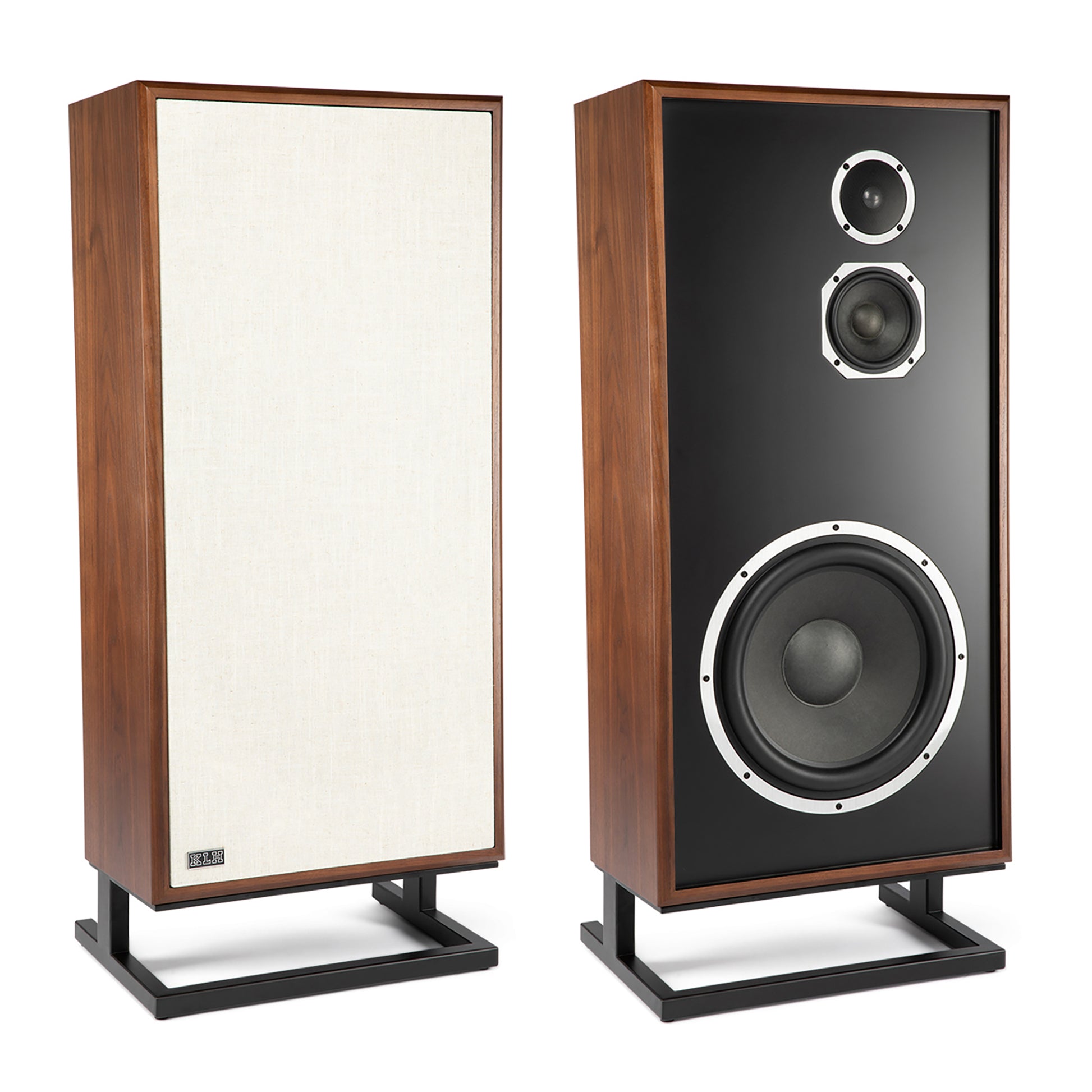

KLH Model Seven Floorstanding Speaker

Three-way, 13" acoustic-suspension tower with 1" aluminum dome, 5" dedicated mid, wide-baffle cabinet, three-position Acoustic Balance Control, and 140° horizontal dispersion

The Model Seven is a wide-baffle, acoustic-suspension floorstander that blends mid-century design with modern engineering.

The Upscale View

KLH quietly remains one of our top-selling loudspeaker brands, offering classic design and excellent no-nonsense performance. The acoustic suspension design (non-ported) means that while bass response isn't as deep as you might expect for driver size, it tight and quick, thereby providing a much greater sense of what bass is like in live music where it doesn't boom, but is a rapid impulse that you feel in your body.

With its classic wood and three-way design, the KLH offers a vintage look while using the latest materials and crossover tuning to match today's high-resolution sources. It fits with gracious ease into most living rooms, and isn't a speaker that the rest of the family will want hidden away.

Manufacturer Information

The Model Seven is a wide-baffle, acoustic-suspension floorstander that blends mid-century design with modern engineering. The included 3° slant riser base sets the baffle at an optimized listening angle, while the placement-friendly sealed design delivers linear bass without requiring large room distances.

A high-displacement 13" woofer provides clean, extended low frequencies; a dedicated 5" midrange (in its own internal enclosure) preserves vocal clarity; and a 1" aluminum-dome tweeter sits behind a precision-machined faceplate. Cast-aluminum driver frames and a structurally reinforced ¾" MDF cabinet with a 1" front baffle keep resonances low for natural, full-range performance.

Five-way gold-plated binding posts ensure secure connections, and the three-position Acoustic Balance Control (0 dB / −1.5 dB / −3 dB above 400 Hz) helps tailor response for real rooms. Low-profile magnetic grilles and real-wood veneers (English Walnut, West African Mahogany) complete the package.

Included Accessories

• Magnetic grille
• 3° slant riser base
• Owner's manual

Specifications

Performance

Frequency Response (±3 dB): 38 Hz–20 kHz

Low-Frequency Extension (−10 dB): 26 Hz

Sensitivity: 91 dB

Nominal Impedance: 4 Ω

Maximum SPL (In-Room): 115 dB

Maximum Output @ 45 Hz: 111 dB

Dispersion (−6 dB): 140° horizontal

Crossover Frequencies: 300 Hz, 3,500 Hz

Acoustic Balance Control (Above 400 Hz): 0 dB, −1.5 dB, −3 dB

Drivers

HF: 1" aluminum dome with soft rubber suspension; machined faceplate

Mid: 5" pulp-paper cone with 1/2-roll rubber suspension; die-cast aluminum frame; sealed sub-enclosure

LF: 13" pulp-paper cone with 1/2-roll rubber suspension and flat-wire voice coil; die-cast aluminum frame

Cabinet & Connections

Enclosure Type: Acoustic suspension; structurally reinforced ¾" & 1" MDF wide-baffle cabinet

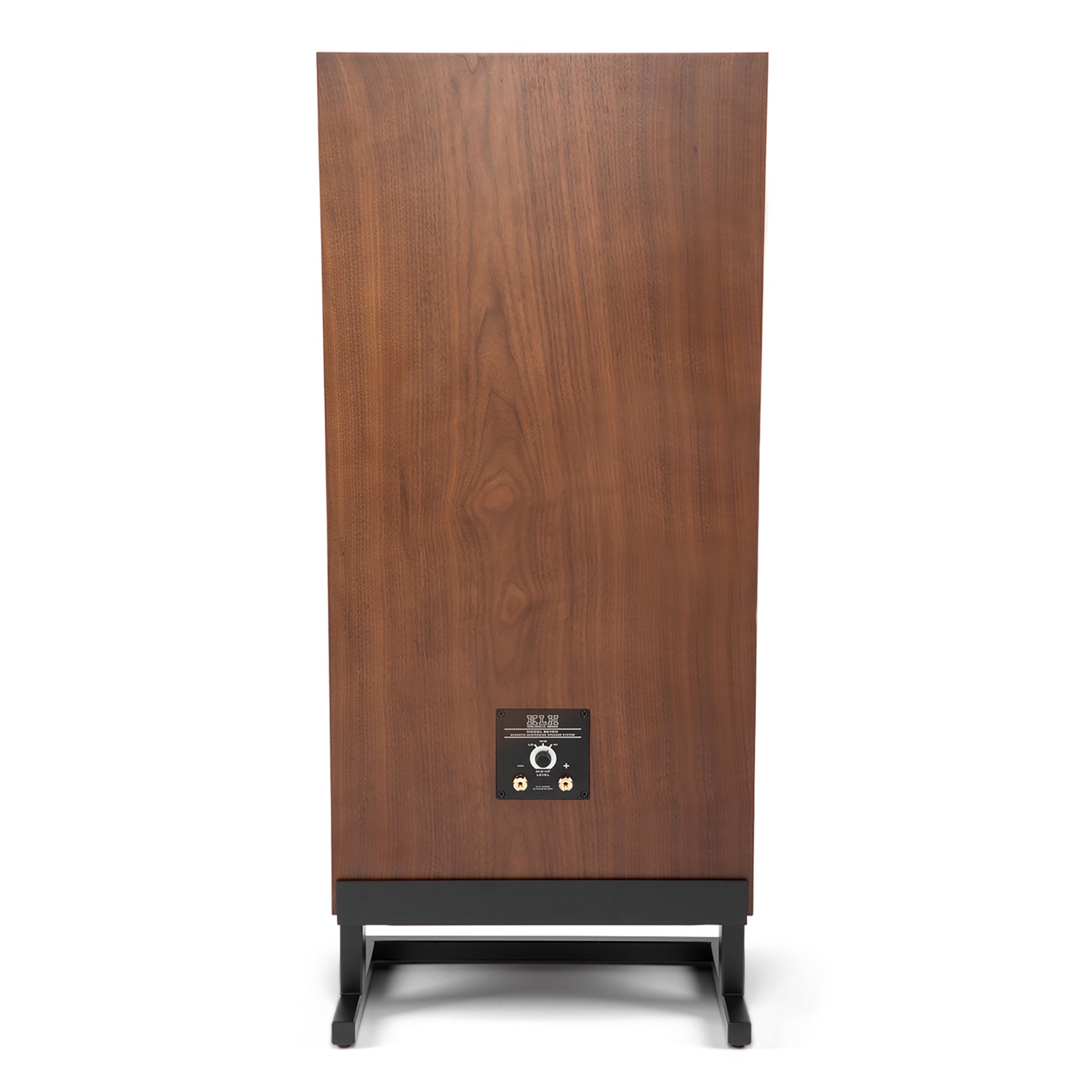

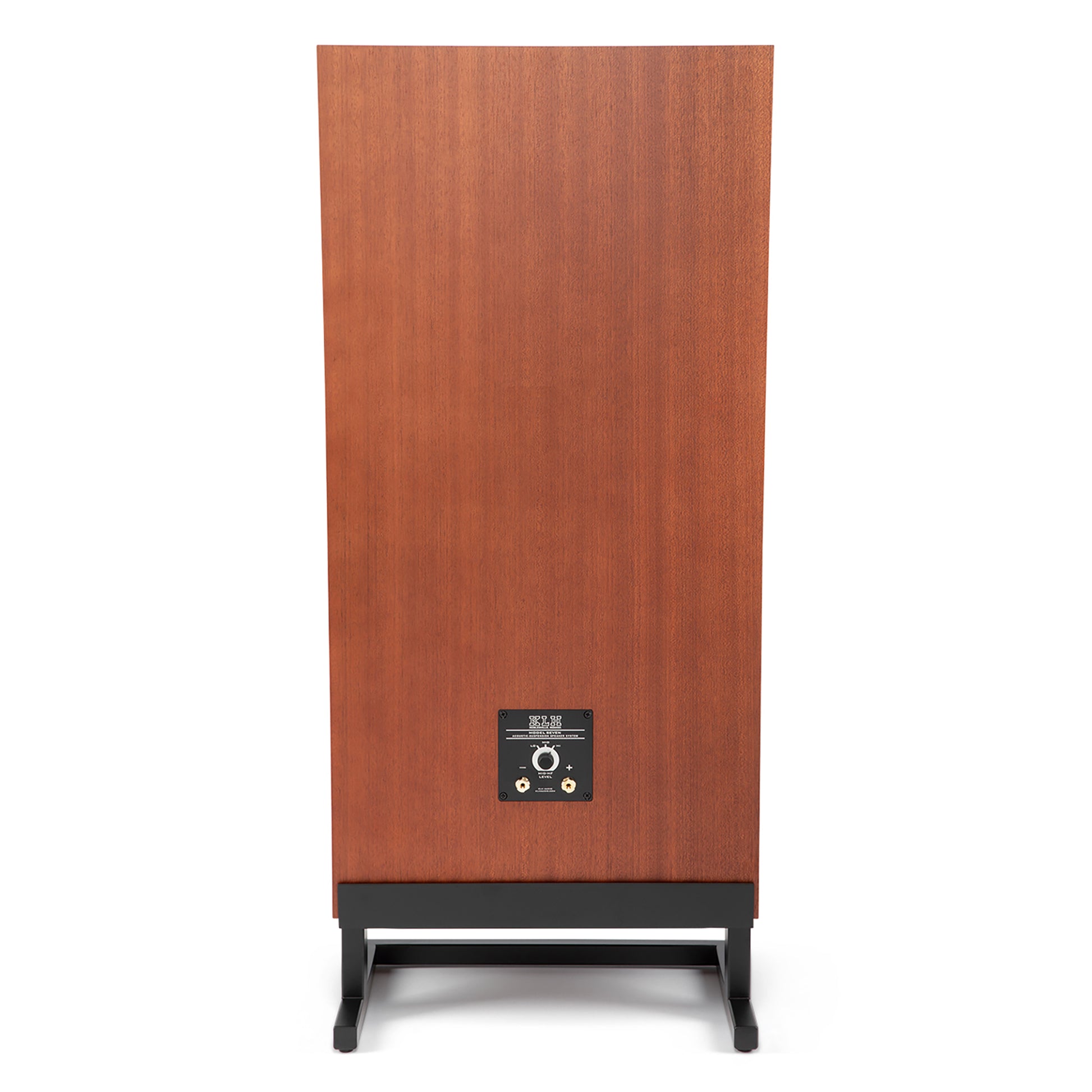

Inputs: Five-way gold-plated binding posts

Grille: Low-profile magnetic grille

Base: Included 3° slant riser base

Finishes: English Walnut; West African Mahogany

Dimensions (WHD) w/ riser: 18" x 41" x 12.25" (457 x 1041 x 311 mm)

Dimensions (WHD) w/o riser: 18" x 36" x 9.75" (457 x 914 x 248 mm)

Weight w/ riser: 78.8 lb. (35.7 kg)

Weight w/o riser: 68 lb. (30.8 kg)
